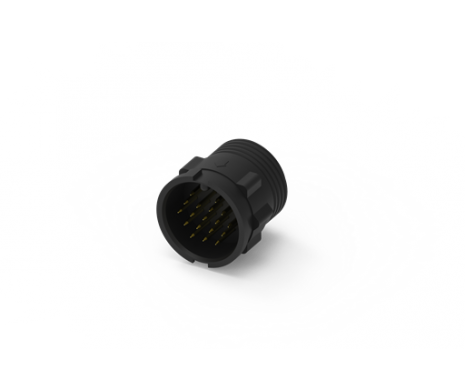

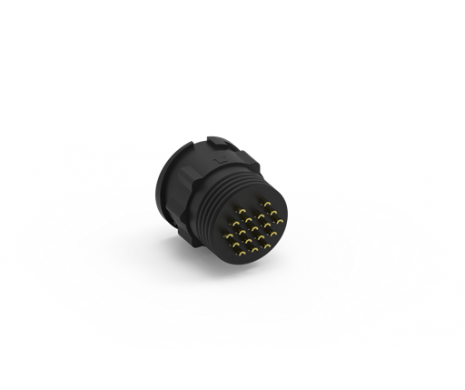

D Size Conn., Solder Pin, M Skt M, Overmolding Cable Lock Bayonet
227D-MMM0
Drawing Number:227D-MMM0
D Size Conn., Solder Pin, M Skt M, Overmolding Cable Lock Bayonet

ATTEND’s plastic circular sealed connectors cover an extensive range which includes A/ B/ C/ D size connectors that support customers look for solutions based on the industry-proven market standard. Waterproof performance is for IPX7/IPX8.

Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
AVAILABLE ACCESSORIES
MAIN FEATURES
Application Drawing

FEATURES:
●Quick-Coupling with positive lock
●Operating temperature range: -40°C~85°C
●High shock and vibration capabilities
●Rugged construction
●IP 67 in sealed condition
industrial device
APPLICATION:
●Power
●IIOT
●Industry
Plastic A/B/C/D Size Instructions
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
             227D-04M02             Pin Assignment 4pin4Pin20A
227D-05M04Pin Assignment 5pin5Pin20A
227D-18M18Pin Assignment 18pin18Pin5A

SPECIFICATION
ELECTRICAL
Current Rating5A/ 20A per pin
Contact Resistance10mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability1,000 Cycle
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing227D-MMM0146 KBPDF: DrawingDownload
3D227D-MMM0448 KBRAR: 3D FileDownload
Drawing227D-000148 KBPDF: DrawingDownload
