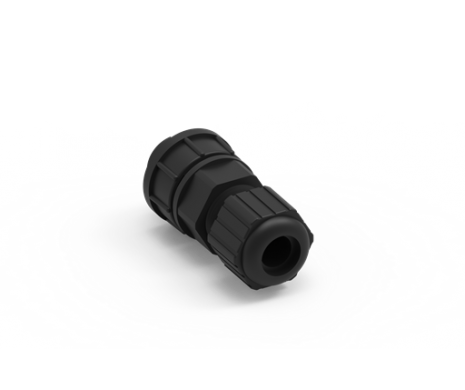

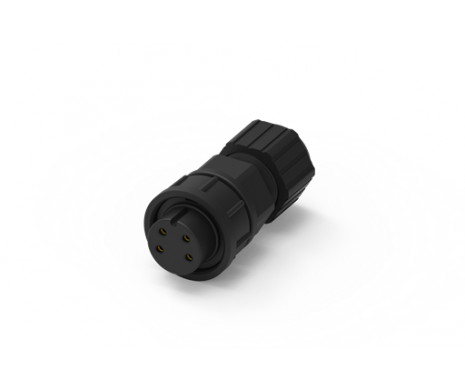

C Size Conn.,Solder Pin, F Skt F, Field Installable Lock Bayonet
227C-AFF0
Drawing Number:227C-AFF0
C Size Conn.,Solder Pin, F Skt F, Field Installable Lock Bayonet

ATTEND's 227 series all-plastic circular connectors are crafted from UL94 V-0 rated PA66 material, providing significant advantages in various critical applications where space and reliability are paramount. Designed to endure an operating temperature range of -40°C to +85°C, these connectors excel in challenging environments. With a capacity for up to 1,000 mating and unmating cycles, they ensure long-lasting durability. Additionally, their gold-plated contacts deliver superior electrical performance. Featuring a corrosion-resistant, all-plastic design and an IP67 protection rating, these connectors are especially well-suited for applications in vibration-prone environments, offering a stable and secure connection.
MAIN FEATURES
Application Drawing

FEATURES:
  • Compact all-plastic design with robust bayonet locking
  • Operating temperature range: -40°C to +85°C
  • Rated for 1,000 mating cycles
  • Corrosion-resistant gold-plated contacts
  • Vibration-resistant with IP67 protection rating
industrial device
APPLICATION:
  • Agriculture
  • Aviation
  • Medical devices
  • Industrial automation
Plastic A/B/C/D Size Instructions
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
             227C-03F02             Pin Assignment3Pin20A
227C-04F01Pin Assignment4Pin10A
227C-05F01Pin Assignment5Pin10A
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
227C-14F01Pin Assignment14Pin5A
227C-18F01Pin Assignment18Pin2A
227C-20F01Pin Assignment20Pin2A

SPECIFICATION
ELECTRICAL
Current Rating2A/ 5A/ 10A/ 20A per pin
Contact Resistance10mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability1,000 Cycle
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing227C-AFF0193 KBPDF: DrawingDownload
3D227C-AFF0503 KBRAR: 3D FileDownload
