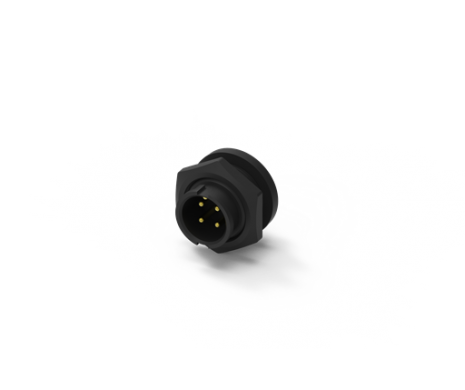

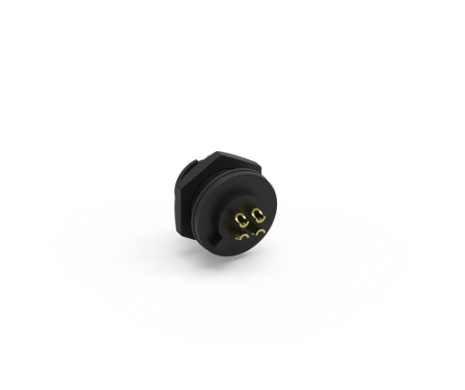

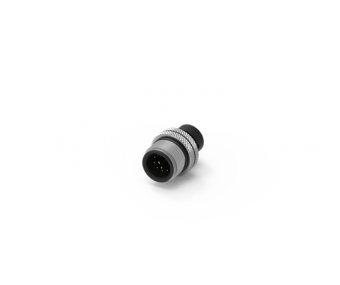

B Size Conn., Solder Pin, M Skt M, Panel Fixed Front Fastened Bayonet
227B-SMM0
Drawing Number:227B-SMM0
B Size Conn., Solder Pin, M Skt M, Panel Fixed Front Fastened Bayonet

ATTEND’s plastic circular sealed connectors cover an extensive range which includes A/ B/ C/ D size connectors that support customers look for solutions based on the industry-proven market standard. Waterproof performance is for IPX7/IPX8.

Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
AVAILABLE ACCESSORIES
MAIN FEATURES
Application Drawing

FEATURES:
●Quick-Coupling with positive lock
●Operating temperature range: -40°C~85°C
●High shock and vibration capabilities
●Rugged construction
●IP 67 in sealed condition
industrial device
APPLICATION:
●Power
●IIOT
●Industry
Plastic A/B/C/D Size Instructions
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
227B-02M06             Pin Assignment2Pin5A
227B-03M08Pin Assignment3Pin5A
227B-04M05Pin Assignment4Pin5A

227B-05M03
Pin Assignment5Pin5A
227B-06M03Pin Assignment6Pin5A
227B-07M02Pin Assignment7Pin5A
227B-08M03Pin Assignment8Pin5A
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
227B-02M05Pin Assignment2Pin10A
227B-03M07Pin Assignment3Pin10A
227B-04M04Pin Assignment4Pin10A
227B-10M03Pin Assignment10Pin2A
227B-12M03Pin Assignment12Pin2A

SPECIFICATION
ELECTRICAL
Current Rating2A/ 5A/ 10A per pin
Contact Resistance10mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability1,000 Cycle
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing227B-SMM0187 KBPDF: DrawingDownload
3D227B-SMM0211 KBRAR: 3D FileDownload
Drawing227B-000144 KBPDF: DrawingDownload
