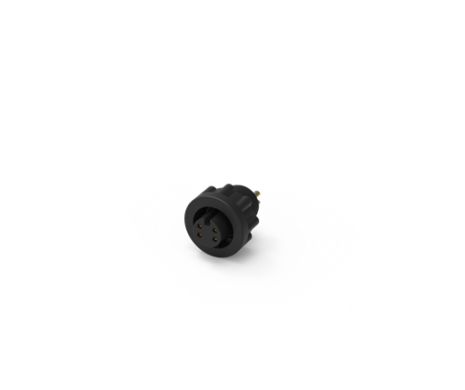

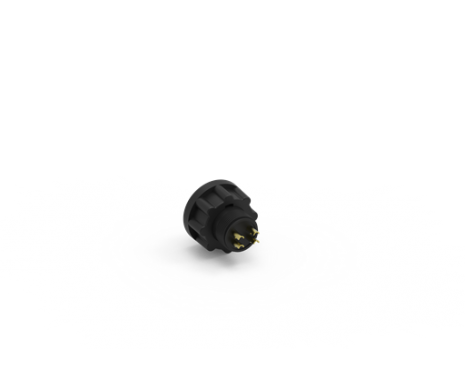

A Size Conn., Solder Pin, F Skt F, Overmolding Cable Lock Bayonet
227A-MFF0
Drawing Number：227A-MFF0
A Size Conn., Solder Pin, F Skt F, Overmolding Cable Lock Bayonet
ATTEND's 227 series all-plastic circular connectors are crafted from UL94 V-0 rated PA66 material, providing significant advantages in various critical applications where space and reliability are paramount. Designed to endure an operating temperature range of -40°C to +85°C, these connectors excel in challenging environments. With a capacity for up to 1,000 mating and unmating cycles, they ensure long-lasting durability. Additionally, their gold-plated contacts deliver superior electrical performance. Featuring a corrosion-resistant, all-plastic design and an IP67 protection rating, these connectors are especially well-suited for applications in vibration-prone environments, offering a stable and secure connection.
A Size Conn., Solder Pin, F Skt F, Overmolding Cable Lock Bayonet
ATTEND's 227 series all-plastic circular connectors are crafted from UL94 V-0 rated PA66 material, providing significant advantages in various critical applications where space and reliability are paramount. Designed to endure an operating temperature range of -40°C to +85°C, these connectors excel in challenging environments. With a capacity for up to 1,000 mating and unmating cycles, they ensure long-lasting durability. Additionally, their gold-plated contacts deliver superior electrical performance. Featuring a corrosion-resistant, all-plastic design and an IP67 protection rating, these connectors are especially well-suited for applications in vibration-prone environments, offering a stable and secure connection.
Share:
MAIN FEATURES
FEATURES:
- Compact all-plastic design with robust bayonet locking
- Operating temperature range: -40°C to +85°C
- Rated for 1,000 mating cycles
- Corrosion-resistant gold-plated contacts
- Vibration-resistant with IP67 protection rating
APPLICATION:
- Agriculture
- Aviation
- Medical devices
- Industrial automation
| Part Number | Pin Assignment | Pin Count | Current Rating |
|---|---|---|---|
| 227A-02F02 |  | 2Pin | 5A |
| 227A-03F02 |  | 3Pin | 5A |
| Part Number | Pin Assignment | Pin Count | Current Rating |
|---|---|---|---|
| 227A-04F02 |  | 4Pin | 2A |
| 227A-05F02 |  | 5Pin | 2A |
| 227A-06F02 |  | 6Pin | 2A |
SPECIFICATION
| Current Rating | 2A/ 5A per pin |
|---|---|
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 1,000 Cycle |
|---|
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 227A-MFF0 | 118 KB | PDF: Drawing |  |
| 3D | 227A-MFF0 | 233 KB | RAR: 3D File | |
