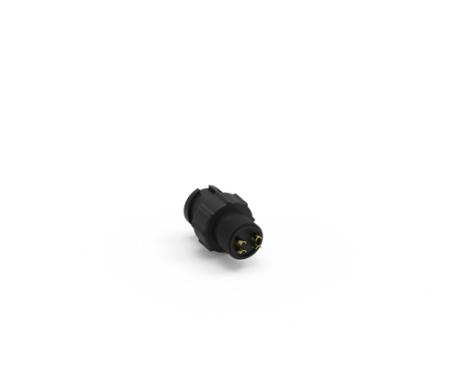

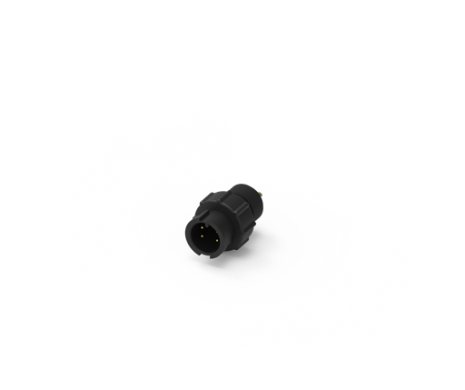

A Size Conn., Solder Pin, M Skt M, Overmolding Cable Lock Bayonet
227A-MMM0
Drawing Number:227A-MMM0
A Size Conn., Solder Pin, M Skt M, Overmolding Cable Lock Bayonet

ATTEND's 227 series all-plastic circular connectors are crafted from UL94 V-0 rated PA66 material, providing significant advantages in various critical applications where space and reliability are paramount. Designed to endure an operating temperature range of -40°C to +85°C, these connectors excel in challenging environments. With a capacity for up to 1,000 mating and unmating cycles, they ensure long-lasting durability. Additionally, their gold-plated contacts deliver superior electrical performance. Featuring a corrosion-resistant, all-plastic design and an IP67 protection rating, these connectors are especially well-suited for applications in vibration-prone environments, offering a stable and secure connection.

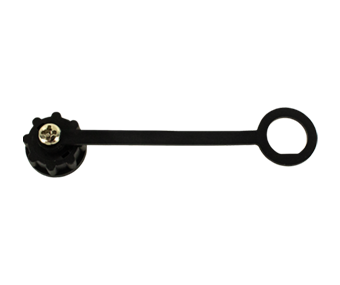

AVAILABLE ACCESSORIES
MAIN FEATURES
Application Drawing

FEATURES:
  • Compact all-plastic design with robust bayonet locking
  • Operating temperature range: -40°C to +85°C
  • Rated for 1,000 mating cycles
  • Corrosion-resistant gold-plated contacts
  • Vibration-resistant with IP67 protection rating
industrial device
APPLICATION:
  • Agriculture
  • Aviation
  • Medical devices
  • Industrial automation
Plastic A/B/C/D Size Instructions
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
             227A-02M04             Pin Assignment2Pin5A
227A-03M04Pin Assignment3Pin5A
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
227A-04M04Pin Assignment4Pin2A
227A-05M04Pin Assignment5Pin2A
227A-06M04Pin Assignment6Pin2A

SPECIFICATION
ELECTRICAL
Current Rating2A/ 5A per pin
Contact Resistance10mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability1,000 Cycle
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing227A-MMM0157 KBPDF: DrawingDownload
3D227A-MMM0137 KBRAR: 3D FileDownload
Drawing227A-000146 KBPDF: DrawingDownload
