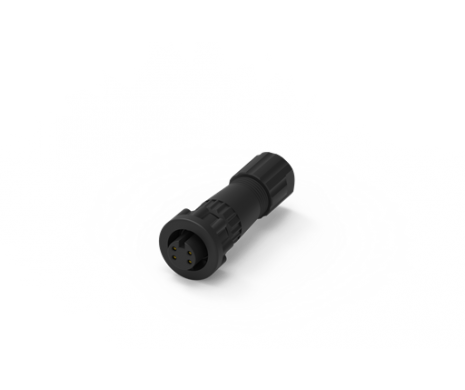

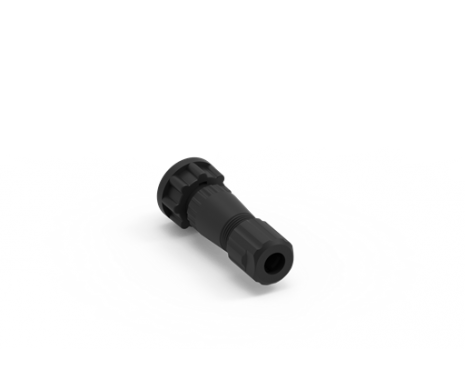

A Size Conn.,Solder Pin, F Skt F, Field Installable Lock Bayonet
227A-AFF0
Drawing Number:227A-AFF0
A Size Conn.,Solder Pin, F Skt F, Field Installable Lock Bayonet
ATTEND’s plastic circular sealed connectors cover an extensive range which includes A/ B/ C/ D size connectors that support customers look for solutions based on the industry-proven market standard. Waterproof performance is for IPX7/IPX8.
Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
A Size Conn.,Solder Pin, F Skt F, Field Installable Lock Bayonet
ATTEND’s plastic circular sealed connectors cover an extensive range which includes A/ B/ C/ D size connectors that support customers look for solutions based on the industry-proven market standard. Waterproof performance is for IPX7/IPX8.
Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
Share:
MAIN FEATURES
FEATURES:
●Quick-Coupling with positive lock
●Operating temperature range: -40°C~85°C
●High shock and vibration capabilities
●Rugged construction
●IP 67 in sealed condition
APPLICATION:
●Power
●IIOT
●Industry
●Power
●IIOT
●Industry
Part Number | Pin Assignment | Pin Count | Current Rating |
---|---|---|---|
227A-02F01 | 2Pin | 5A | |
227A-03F01 | 3Pin | 5A |
Part Number | Pin Assignment | Pin Count | Current Rating |
---|---|---|---|
227A-04F01 | 4Pin | 2A | |
227A-05F01 | 5Pin | 2A | |
227A-06F01 | 6Pin | 2A |
SPECIFICATION
Current Rating | 2A/ 5A per pin |
---|---|
Contact Resistance | 10mΩ |
Insulation Resistance | 100MΩ |
Dielectric Withstanding Voltage | 500VAC |
Durability | 1,000 Cycle |
---|
Operating temperature range | -40°C~+85°C |
---|---|
Storage temperature range | -40°C~+85°C |
