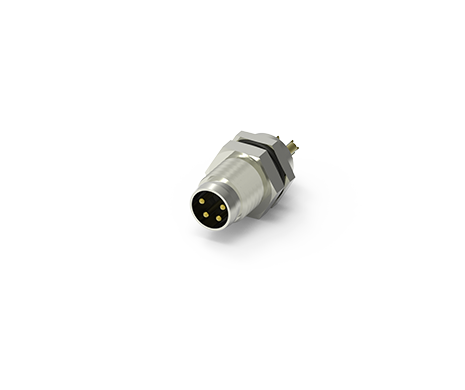

M8 A Code, Male, Straight Type, Rear Fastened

219A-XXMAF

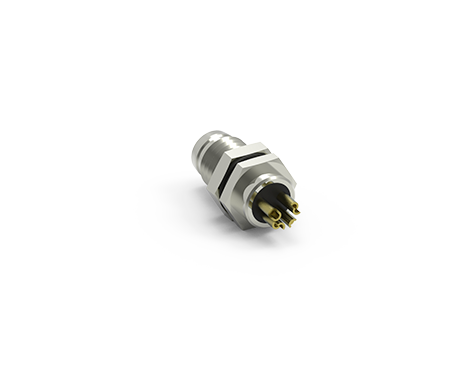

M8 A Code Receptacle, Male Pins, Straight Type, Rear Fastened

ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.

MAIN FEATURES

•   Four shell sizes available: M5, M8, M12, and M23
•   Receptacle and plug available: PCB, solder, and cable type
•   Cable type two solutions: Overmold or field installable
•   Coding system A, D, and X
•   Waterproof (IP67)
•   2- to 12-pin contact position option

APPLICATIONS

Industrial networks
Fieldbus applications
Power supplies
Automation equipment
Sensors

Product Specification Comparison Table
Part Number	Pin Assignment	Pin Count
219A-03MAF		3Pin
219A-04MAF		4Pin

Product Specification Comparison Table
Part Number	Pin Assignment	Pin Count
219A-05MAF		5Pin
219A-05MAF-01		5Pin
219A-08MAF		8Pin

SPECIFICATION

ELECTRICAL
5~8 Pin Current Rating	1.5A
5~8 Pin Voltage Rating	30VAC/DC
3~4 Pin Current Rating	3A
3~4 Pin Voltage Rating	50VAC/60VDC

ENVIRONMENTAL
Operating temperature range	-40°C~+85°C
Waterproof Level	IP67

DOWNLOAD

CATEGORY	TITLE	SIZE	FILE TYPE
Drawing	219A-04MAF	115 KB	PDF: Drawing
3D	219A-04MAF	165 KB	RAR: 3D File
Drawing	219A-05MAF	111 KB	PDF: Drawing
Drawing	219A-08MAF	111 KB	PDF: Drawing
Drawing	219A-03MAF	107 KB	PDF: Drawing
Datasheet	219Series Spec	395 KB	PDF:Spec
