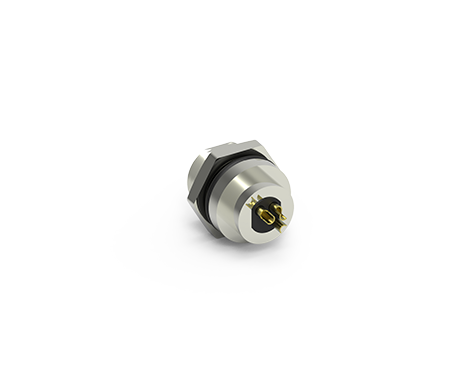

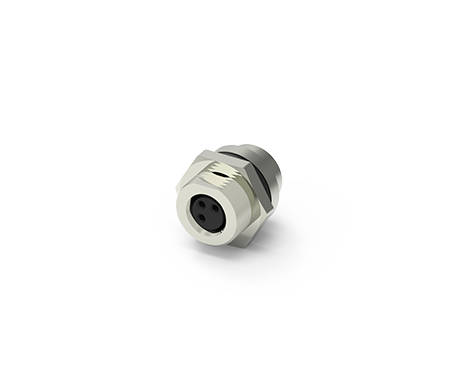

M8 A Code, Female, Solder Type, Front Fastened
219A-XXFAF
M8 A Code Receptacle, Female Pins, Solder Type, Front Fastened

ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
Panel Mount Ordering Instructions
*
•    Four shell sizes available: M5, M8, M12, and M23
•    Receptacle and plug available: PCB, solder, and cable type
•    Cable type two solutions: Overmold or field installable
•    Coding system A, D, and X
•    Waterproof (IP67)
•    2- to 12-pin contact position option
APPLICATIONS
Industrial networks
  • Industrial networks
  • Fieldbus applications
  • Power supplies
  • Automation equipment
  • Sensors

Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             219A-03FAF             Pin Assignment3Pin
219A-05FAFPin Assignment5Pin
219A-04FAFPin Assignment4Pin



SPECIFICATION
ELECTRICAL
Current Rating3A
Voltage Rating50VAC/60VDC
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Waterproof LevelIP67
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing219A-03FAF126 KBPDF: DrawingDownload
3D219A-03FAF249 KBRAR: 3D FileDownload
Drawing219A-05FAF120 KBPDF: DrawingDownload
Drawing219A-04FAF120 KBPDF: DrawingDownload
Datasheet219Series Spec395 KBPDF:SpecDownload
