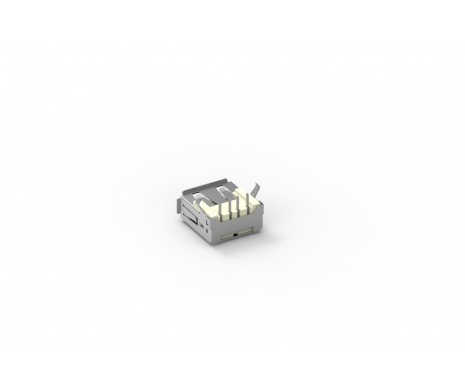

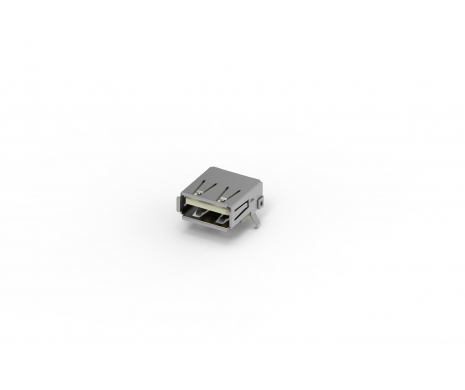

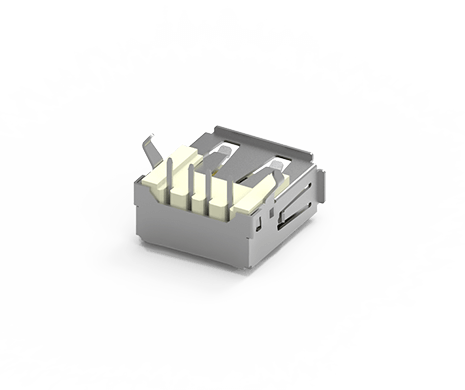

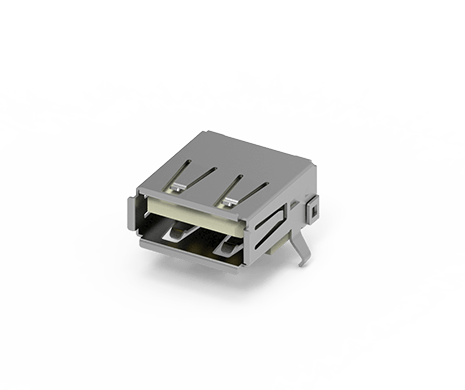

USB A Female Receptacle, R/A, DIP, PBT G/F white
205B-DT03
USB A Female Receptacle, R/A, DIP, PBT G/F white
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
Share:
SPECIFICATION
| Current Rating | 1.5A per pin |
|---|---|
| Voltage Rating | 250V AC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 1,500 Cycle |
|---|---|
| Insertion Force | 35N max. |
| Extraction Force | 10N min. |
| Operating temperature range | -55°C~+85°C |
|---|---|
| Storage temperature range | -55°C~+85°C |
| Recommended IR Reflow Temperature | 245°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 205B-DT03 | 175 KB | PDF: Drawing |  |
| 3D | 205B-DT03 | 246 KB | RAR: 3D File | |
