M12 D Code, Plug, Male, Overmold with cable
216D-XXMO0
M12 D Code, Plug for Cable, Male Pins, Overmold with cable
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:

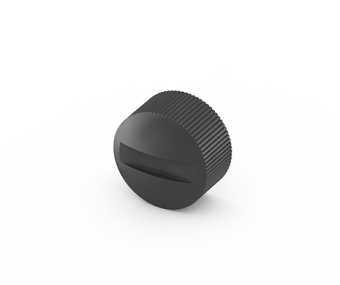

AVAILABLE ACCESSORIES
MAIN FEATURES
(1).png)
• Four shell sizes available: M5, M8, M12, and M23
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
APPLICATIONS
- Industrial networks
- Fieldbus applications
- Power supplies
- Automation equipment
- Sensors
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216D-04MO0 | 216D-04FO0 216D-04FAF 216D-04FSF 216D-04FF0 216D-04FSA 216D-04FRA |  | 4Pin |
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216D-05MO0 | 216D-05FSA 216D-05FRA |  | 5Pin |
SPECIFICATION
| 4Pin Current Rating | 4A |
|---|---|
| 4Pin Voltage Rating | 250V |
| 5Pin Current Rating | 4A |
| 5Pin Voltage Rating | 60VDC |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216D-04MO0 | 163 KB | PDF: Drawing |  |
| 3D | 216D-04MO0 | 354 KB | RAR: 3D File | |
| Datasheet | Pairing Diagram M Series waterproof connector | 95 KB | | |
| Datasheet | 216Series Spec | 396 KB | PDF:Spec | |
| Drawing | 216D-05MO0 | 216 KB | PDF: Drawing | |
| 3D | 216D-05MO0 | 1915 KB | RAR: 3D File | |
