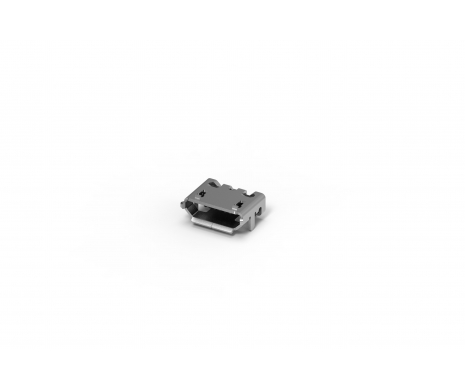

Micro USB2.0 B Type, DIP Type
207A-BAB0-01
Micro USB 2.0, B Type Receptacle, DIP, GF
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
Share:
SPECIFICATION
Current Rating: Pin1,5 | 1.8A |
---|---|
Current Rating: Pin2,3,4 | 0.5A |
Voltage Rating | 40V AC |
Contact Resistance | 60mΩ |
Insulation Resistance | 100MΩ |
Dielectric Withstanding Voltage | 100VAC |
Durability | 10,000 Cycle |
---|---|
Mating Force | 35N max. |
Unmating Force | 8N min. |
Operating temperature range | -30°C~+80°C |
---|---|
Storage temperature range | -30°C~+80°C |
Soldered Temperature | 255±5°C 5sec |
---|---|
Recommended IR Reflow(Wave Soldering) Temperature | 260°C 10sec max |
