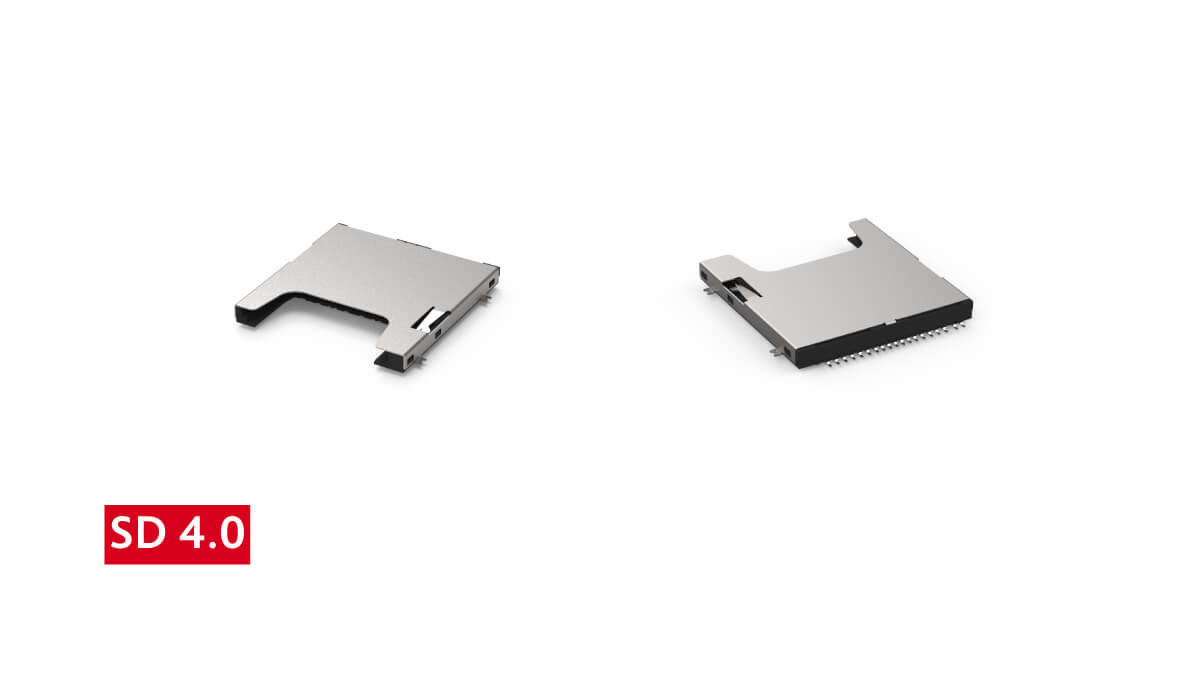

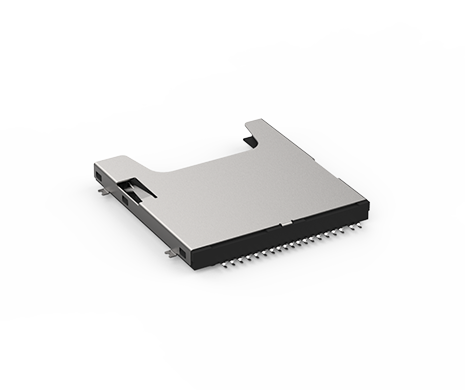

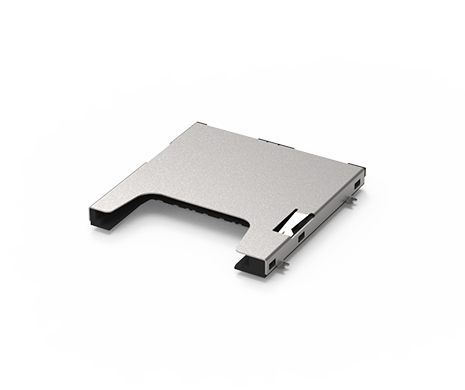

UHS-II SD 4.0 Socket, Push-Push Type
104I-TA01
SD 4.0 Socket, UHS-II, Top Mount, Push-Push Type, w/switch/card lock, G/F
SD compliant for UHS-I and UHS-II interface.
ATTEND’s SD 4.0 Socket with UHS-II contacts ensures stable and fast data transfer for industrial, automotive, and consumer applications. The top mount, push-push design with a card lock provides a secure and durable connection, ideal for demanding environments. ATTEND’s SD/Micro SD sockets offer broad compatibility and reliability across various industries.
SD compliant for UHS-I and UHS-II interface.
ATTEND’s SD 4.0 Socket with UHS-II contacts ensures stable and fast data transfer for industrial, automotive, and consumer applications. The top mount, push-push design with a card lock provides a secure and durable connection, ideal for demanding environments. ATTEND’s SD/Micro SD sockets offer broad compatibility and reliability across various industries.
Share:
MAIN FEATURES
- Push Push SMT Type
- Durability 5,000cycle by UHS-II SD Card
- Operating temperature range: -25℃ ~ 85℃
- Maximum transfer speed for UHS-II is up to 624MB/s
- Embedded systems
- Machine vision systems
- IIoT
- Infotainment
- Action Cameras
SPECIFICATION
| Current Rating | 1A MAX. |
|---|---|
| Operating Voltage | 30V AC/DC |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 1000MΩ(250VDC) |
| Dielectric Withstanding Voltage | 500VAC/ 1mimute |
| Durability | 5,000 Cycle by UHS-II SD Card |
|---|
| Operating temperature range | -25°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 104I-TA01 | 890 KB | PDF: Drawing |  |
| 3D | 104I-TA01 | 947 KB | RAR: 3D File | |
| Datasheet | 104I-TA01 Spec | 428 KB | PDF:Spec | |
