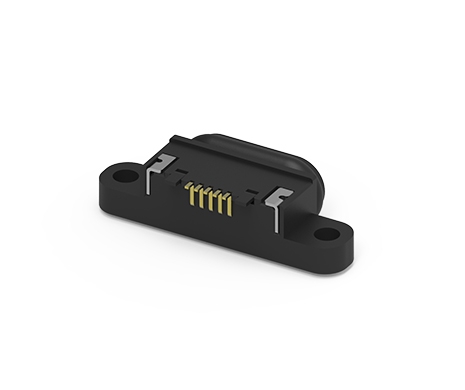

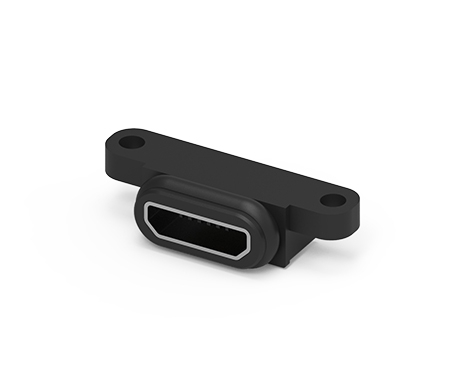

Micro USB 2.0, B Type, R/A SMT Type
207G-BD00
Micro USB 2.0, B Type Receptacle, Right Angle, SMT, 10u''
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
Share:
SPECIFICATION
| Current Rating: Signal(Pin2,3,4) | 1.0A |
|---|---|
| Current Rating: Power(Pin1,5) | 1.8A |
| Current Rating: Other | 0.5A |
| Voltage Rating | 30V max |
| Contact Resistance | 40mΩ max |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 35N max. |
| Extraction Force | 8~20N max. |
| Operating temperature range | -25°C~+85°C |
|---|---|
| Storage temperature range | -20°C~+85°C |
| Wasterproof Level | IPX7 |
| Recommended IR Reflow Temperature | 260°C +0/-5°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 207G-BD00 | 131 KB | PDF: Drawing |  |
| 3D | 207G-BD00 | 177 KB | RAR: 3D File | |
