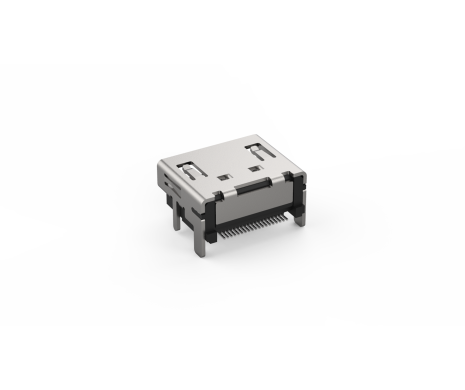

HDMI 2.1 A Type Connector, SMT+Shell DIP type
206A-SE02
2.1 HDMI Connector, A SMT+Shell DIP type, w/o Kink, w/o Peg, 15u"
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
Share:
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Contact Resistance | 30mΩ |
| Insulation Resistance | 100 MΩ Min |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 4.5kgf |
| Extraction Force | 1kgf~4kgf |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 206A-SE02 | 712 KB | PDF: Drawing |  |
| 3D | 206A-SE02 | 305 KB | RAR: 3D File | |
