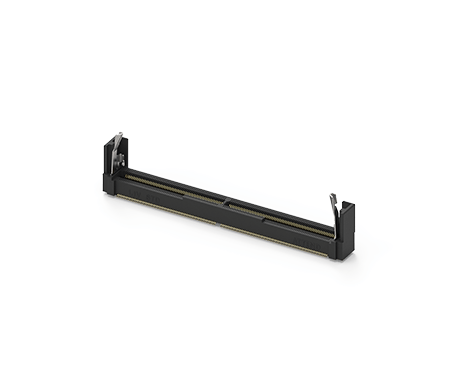

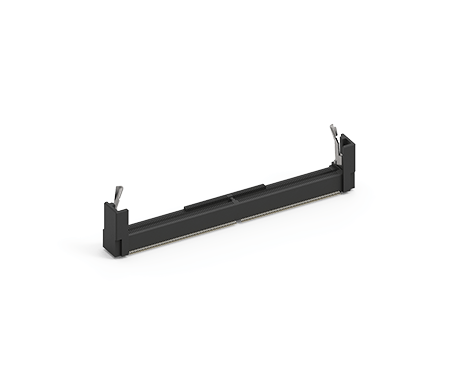

DDR5 SODIMM Socket, Vertical Standard Type

126B-190A00

SO DIMM DDR5 Socket Vertical Standard Type, 262 Pin, GF, Black

ATTEND's DDR5 SODIMM socket is a high-performance solution that meets JEDEC standards for high-speed electrical requirements. With an LCP housing for robust mechanical strength, stability, and chemical/heat resistance, these sockets are available in both vertical and horizontal options with an extended latch design for easy installation of DDR RAM modules. Suitable for use in industrial, data, and communication applications, these sockets offer superior performance and durability, making them an excellent choice for improving system performance.

MAIN FEATURES

JEDEC Standards
Meet high speed electrical requirement of JEDEC standards.
Passed high-speed electronics requirements.
LCP Housing
LCP housing offers robust mechanical strength, stability, electrical performance, flame retardancy, and chemical/heat resistance.
Vertical & Horizontal
The DDR5 SODIMM socket is in two options: vertical and horizontal, with different heights for customers to choose from.
Quick & Easy
Extended latch design which enables a swift and effortless installation of DDR RAM modules, while ensuring operator-friendly.

APPLICATION

Industrial

Embedded System
Test & Measurement Equipment

Data

Server and Storage Systems
Supercomputers
Workstations

Communication

Switches
Routers
Base Stations
Wireless Infrastructure

SPECIFICATION

ELECTRICAL
Current Rating	0.6 per pin
Voltage Rating	25V AC
Contact Resistance	60mΩ max.
Insulation Resistance	100MΩ
Dielectric Withstanding Voltage	500VAC

MECHANICAL
Durability	50 Cycle
Insertion Force	59.8N max.
Extraction Force	44.6N max.

ENVIRONMENTAL
Operating temperature range	-40℃~+85℃
Storage temperature range	-40℃~+85℃

SOLDER ABILITY
Recommended IR Reflow Temperature	260℃

DOWNLOAD

CATEGORY	TITLE	SIZE	FILE TYPE
3D	126B-190A00	807 KB	RAR: 3D File
Drawing	126B-190A00	373 KB	PDF: Drawing
Datasheet	126B-190AX0	442 KB	PDF:Spec
