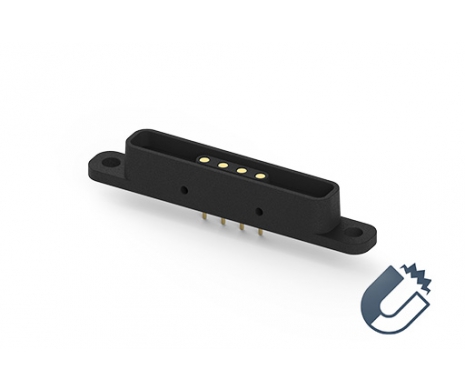

Pogo Pin Magnet Type, Machine Pin 4P, 38.0x5.3x8.5h
303D-L380F04
Pogo Pin Magnet Type, Machine Pin 4P, 38.0x5.3x8.5h, 5u", 500g, 5A, black

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
SPECIFICATION
ELECTRICAL
Current Rating2A
Voltage Rating12 VDC
Contact Resistance50mΩ
ENVIRONMENTAL
Operating temperature range-30°C~+60°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing303D-L380F0480 KBPDF: DrawingDownload
3D303D-L380F04129 KBRAR: 3D FileDownload
