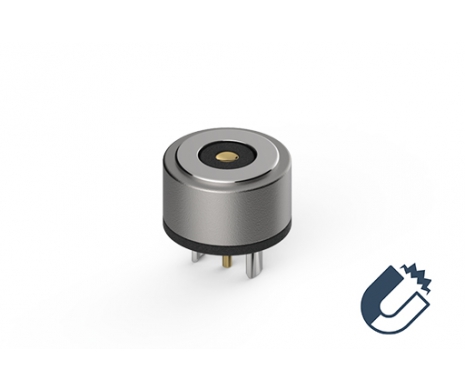

Pogo Pin Magnet Type, Machine Pin, 2P, 8.0D, 10u'', 200g, 5A
303D-D080F02
Pogo Pin Magnet Type, Machine Pin, 2P, 8.0D, DIP, 10u'', 200g, 5A, black

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
MAIN FEATURES
*
INTRODUCTION:
● Easy, fast connection
● High number of mating cycles
● Breakaway function
● Cable design and Assembly with  Magnetic connector
*
APPLICATION:
  • Smart wearable products
  • Office device：ePaper meeting room booking displays
  • Medical industry：blood pressure monitors, heart rate monitors
SPECIFICATION
ELECTRICAL
Current Rating2A
Voltage Rating12 VDC
Contact Resistance50mΩ
ENVIRONMENTAL
Operating temperature range-30°C~+60°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing303D-D080F0271 KBPDF: DrawingDownload
3D303D-D080F0248 KBRAR: 3D FileDownload
Datasheet303D-D080X02 Spec282 KBPDF:SpecDownload
