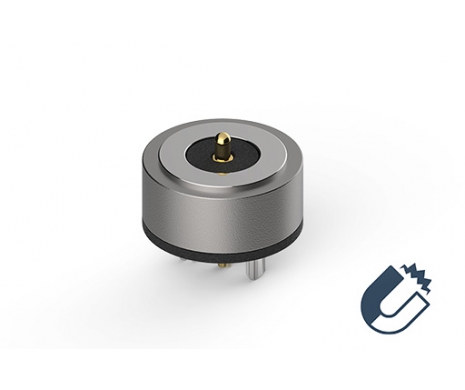

Pogo Pin Magnet Type, 2P, 10.0D, DIP, 10u", 500g, 3A, black
303D-D100M02
Pogo Pin Magnet Type, 2P, 10.0D, DIP, 10u", 500g, 3A, black

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
MAIN FEATURES
*
INTRODUCTION:
● Easy, fast connection
● High number of mating cycles
● Breakaway function
● Cable design and Assembly with  Magnetic connector
*
APPLICATION:
  • Smart wearable products
  • Office device:ePaper meeting room booking displays
  • Medical industry:blood pressure monitors, heart rate monitors
SPECIFICATION
ELECTRICAL
Current Rating3A
Voltage Rating12 VDC
Contact Resistance50mΩ
ENVIRONMENTAL
Operating temperature range-30°C~+60°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing303D-D100M0271 KBPDF: DrawingDownload
3D303D-D100M0238 KBRAR: 3D FileDownload
Datasheet303D-D100X02 Spec282 KBPDF:SpecDownload
