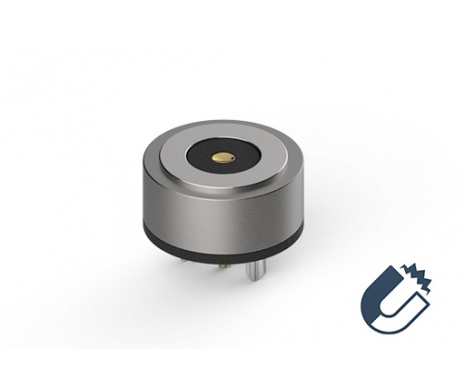

Pogo Pin Magnet, Machine Pin 2P, 10.0D, DIP

303D-D100F02

Pogo Pin Magnet Type, Machine Pin 2P, 10.0D, DIP, 10u'', 500g, 5A, black

ATTEND’s Magnetic Pogo Pin Connector combines magnetic alignment with durable Pogo Pin technology, offering seamless power and data transmission in demanding environments. It’s designed to ensure fast, reliable, and efficient connections, meeting the needs of advanced industrial and consumer applications.

Highlights:
●Quick Connection: Magnetic alignment for precise attachment.
●Damage Prevention: Tear-away feature protects devices.
●Stable Performance: Vibration-proof for reliable operation.

ATTEND delivers innovative solutions for superior connectivity and performance.

MAIN FEATURES

ATTEND Magnetic Connector delivers stable and reliable power and data transmission with a magnetic alignment design to ensure efficient connections.

● Fast and Easy Connection: Magnetic design enables quick and precise device attachment.
● High Durability: Supports numerous mating cycles, ensuring long-term stable performance.
● Breakaway Function: Provides safe disconnection during accidental detachment to prevent device damage.
● Integrated Design: Includes cable design and assembly for seamless integration.

This connector is ideal for outdoor devices, industrial equipment, and other high-demand applications.

Applications:

Smart Wearable Products: Ideal for fitness trackers, smartwatches, and other wearable technologies.
Office Devices: Perfect for ePaper meeting room booking displays and other office automation solutions.
Medical Industry: Reliable for devices such as blood pressure monitors, heart rate monitors, and other medical equipment.

SPECIFICATION

ELECTRICAL
Current Rating	5A
Voltage Rating	12 VDC
Contact Resistance	100mΩ

ENVIRONMENTAL
Operating temperature range	-30°C~+60°C

DOWNLOAD

CATEGORY	TITLE	SIZE	FILE TYPE
Drawing	303D-D100F02	71 KB	PDF: Drawing
3D	303D-D100F02	44 KB	RAR: 3D File
Datasheet	303D-D100X02 Spec	282 KB	PDF:Spec
