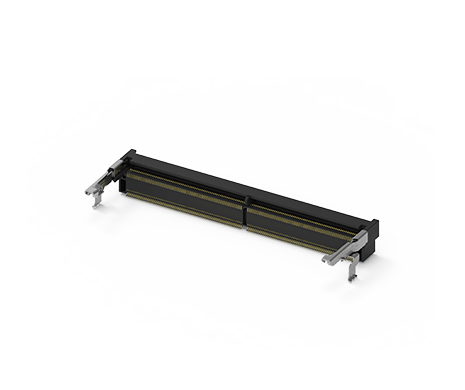

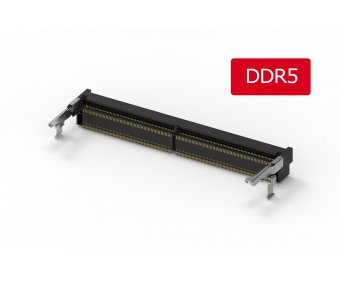

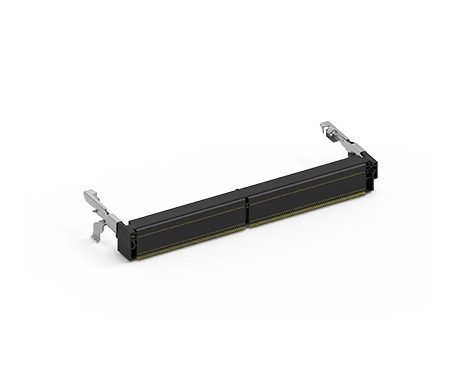

DDR5 SODIMM Socket, Horizontal 9.2H, STD
126A-92A00
DDR5 SODIMM Socket, Horizontal 9.2H, STD, G/F, Black, Reel, Solder PEG

ATTEND's DDR5 SODIMM modules feature higher memory speeds and increased bandwidth starting at 4800 MHz, as well as larger capacities compared to DDR4. These advancements enable faster data transfer rates and improved multitasking capabilities, resulting in smoother and more responsive computing experiences. DDR5 features on-die error correcting code (ECC) for enhanced data integrity and reliability. The DDR5 SODIMM socket is available in 262 pins and is half the size of regular DIMMs. The 126B series operate at lower voltage levels, which helps reduce energy consumption and heat generation, resulting in improved laptop battery life and lower cooling requirements for small form factor systems.
MAIN FEATURES
*
  • Height range: 4 mm to 9.2 mm
  • Right-angle and vertical orientations are available to accommodate different customer preferences
  • High density: 0.5 mm pitch and 262 contact points
  • High bandwidth: 32,000 MB/s to 64,000 MB/s
  • Compatible with the JEDEC standard

APPLICATION
*
  • Embedded systems
  • Edge computing
  • Industrial PCs
  • Servers
  • Box PCs
  • Routers
  • Switches
  • Notebook PCs
SPECIFICATION
ELECTRICAL
Current Rating0.6A per pin
Voltage Rating25V AC
Contact Resistance60mΩ max.
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability50 Cycle
Insertion Force59.8N Max.
Extraction Force44.6N Max.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing126A-92A00528 KBPDF: DrawingDownload
3D126A-92A002690 KBRAR: 3D FileDownload
