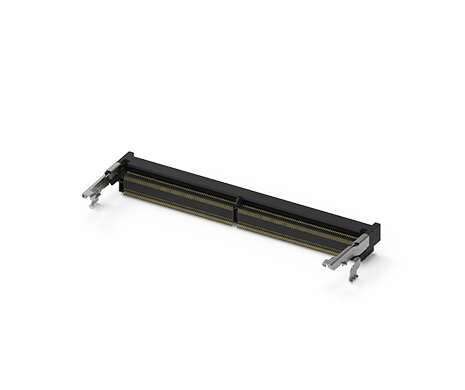

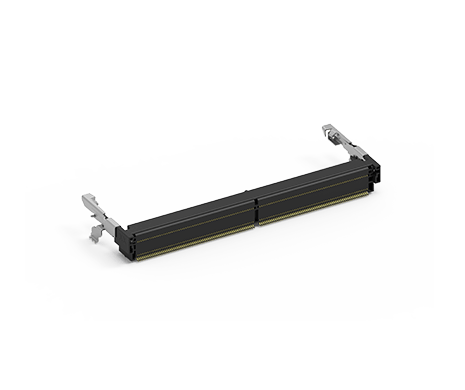

DDR5 SODIMM Socket, Horizontal 8.0H, RVS
126A-80A10
DDR5 SODIMM Socket, Horizontal 8.0H, RVS, G/F, Black, Reel, Solder PEG
ATTEND's DDR5 SODIMM modules feature higher memory speeds and increased bandwidth starting at 4800 MHz, as well as larger capacities compared to DDR4. These advancements enable faster data transfer rates and improved multitasking capabilities, resulting in smoother and more responsive computing experiences. DDR5 features on-die error correcting code (ECC) for enhanced data integrity and reliability. The DDR5 SODIMM socket is available in 262 pins and is half the size of regular DIMMs. The 126B series operate at lower voltage levels, which helps reduce energy consumption and heat generation, resulting in improved laptop battery life and lower cooling requirements for small form factor systems.
ATTEND's DDR5 SODIMM modules feature higher memory speeds and increased bandwidth starting at 4800 MHz, as well as larger capacities compared to DDR4. These advancements enable faster data transfer rates and improved multitasking capabilities, resulting in smoother and more responsive computing experiences. DDR5 features on-die error correcting code (ECC) for enhanced data integrity and reliability. The DDR5 SODIMM socket is available in 262 pins and is half the size of regular DIMMs. The 126B series operate at lower voltage levels, which helps reduce energy consumption and heat generation, resulting in improved laptop battery life and lower cooling requirements for small form factor systems.
Share:
MAIN FEATURES
- Height range: 4 mm to 9.2 mm
- Right-angle and vertical orientations are available to accommodate different customer preferences
- High density: 0.5 mm pitch and 262 contact points
- High bandwidth: 32,000 MB/s to 64,000 MB/s
- Compatible with the JEDEC standard
APPLICATION
- Embedded systems
- Edge computing
- Industrial PCs
- Servers
- Box PCs
- Routers
- Switches
- Notebook PCs
SPECIFICATION
| Current Rating | 0.6A per pin |
|---|---|
| Voltage Rating | 25V AC |
| Contact Resistance | 60mΩ max. |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 50 Cycle |
|---|---|
| Insertion Force | 59.8N Max. |
| Extraction Force | 44.6N Max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 126A-80A10 | 477 KB | PDF: Drawing |  |
| 3D | 126A-80A10 | 2645 KB | RAR: 3D File | |
