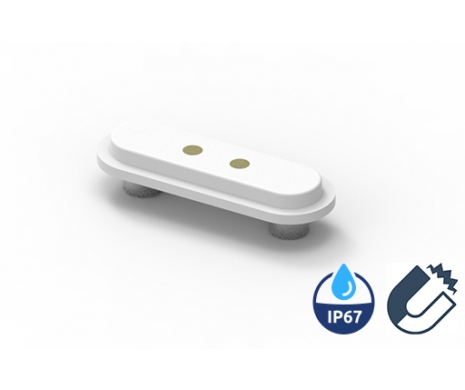

Pogo Machine Pin, Waterproof, Magnet Type, H=4.5mm, Pitch 4.0
303C-C4515-40-02
Pogo Machine Pin, Waterproof, Magnet Type, H=4.5mm, Pitch 4.0, DIP, 3u''
ATTEND’s IP67 Waterproof Magnetic Pogo Pin Connector is designed for demanding environments, providing stable and reliable power and data transmission. The magnetic alignment ensures quick and effortless connections, while the IP67 rating offers exceptional water and dust resistance.
Highlights:
●Waterproof Design: IP67-rated for use in outdoor and harsh environments.
●Fast Connection: Magnetic alignment ensures quick and secure connections.
●Vibration-Proof: Stable and reliable for high-vibration applications.
This connector is ideal for outdoor devices, industrial equipment, and other high-demand applications, delivering an efficient and robust connectivity solution.
ATTEND’s IP67 Waterproof Magnetic Pogo Pin Connector is designed for demanding environments, providing stable and reliable power and data transmission. The magnetic alignment ensures quick and effortless connections, while the IP67 rating offers exceptional water and dust resistance.
Highlights:
●Waterproof Design: IP67-rated for use in outdoor and harsh environments.
●Fast Connection: Magnetic alignment ensures quick and secure connections.
●Vibration-Proof: Stable and reliable for high-vibration applications.
This connector is ideal for outdoor devices, industrial equipment, and other high-demand applications, delivering an efficient and robust connectivity solution.
Share:
MAIN FEATURES
ATTEND’s IP67 Waterproof Magnetic Connector offers reliable and efficient connections with magnetic alignment for stable power and data transmission.
- Easy and Fast Connection: Magnetic design ensures quick and precise attachment.
- Waterproof IP67: Protects against water and dust for outdoor and harsh environments.
- High Durability: Supports numerous mating cycles for long-lasting performance.
- Breakaway Function: Prevents damage with safe disconnection under accidental force.
- Integrated Design: Includes cable design and assembly for seamless integration.
This connector is ideal for outdoor devices, industrial equipment, and other demandin
Applications:
- Smart Wearable Products: Ideal for fitness trackers, smartwatches, and other wearable technologies.
- Office Devices: Perfect for ePaper meeting room booking displays and other office automation solutions.
- Medical Industry: Reliable for devices such as blood pressure monitors, heart rate monitors, and other medical equipment.
SPECIFICATION
| Current Rating | 2A per pin |
|---|---|
| Voltage Rating | 5 VDC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Pin Strength | 9.8N min. |
|---|---|
| Pin Pulling off Force | 4.9N min. |
| Durability | 10,000 Cycles |
| Operating temperature range | -30°C~+85°C |
|---|---|
| Storage temperature range | -30°C~+85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 303C-C4515-40-02 | 70 KB | PDF: Drawing |  |
| Datasheet | 303C-C4515-40-02 | 294 KB | PDF:Spec | |
