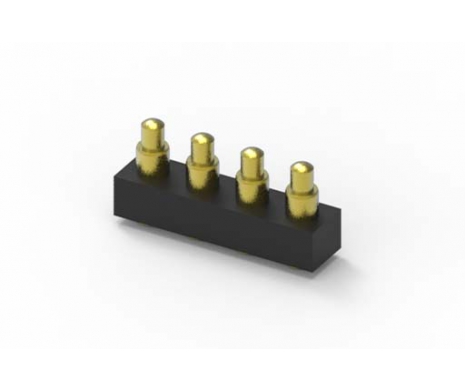

• Connector Solution 303B-371318-254-04
  • Connector Solution 303B-371318-254-04
Pogo Pin, 04 Pin, 2.54P, 10u", 5.0H 1.3 Stroke, SMT
303B-371318-254-04
Pogo Pin, 04 Pin, 2.54P, 10u", 5.0H 1.3 Stroke, SMT

Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.

Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
SPECIFICATION
ELECTRICAL
Current Rating2A
Voltage Rating30V
Contact Resistance50mΩ Max, at working height
MECHANICAL
Spring Force0.7N±0.2N at working height
Durability10,000 Cycles
  • To avoid arcing issue, the adaptor start to power supply after connector mated fully.
  • Based on the Engineer drawing, shall not exceed on the working height the maximum allowed compress.
  • To ensure the best usage, please operate it based supply after connector mated fully.
  • How to order :  303B-371318-254-XX
    pin count : XX= 02~16 (Please contact with sales for the pins count available)
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing303B-371318-254-XX189 KBPDF: DrawingDownload
