Dual Nano SIM Socket, Tray Push-Push
115U-B100
Dual Nano SIM Socket, Tray Push-Push, 6 Pin, Lock w/Switch, G/F

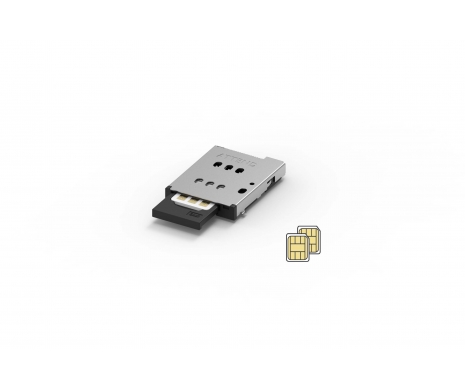

ATTEND’s 115U-B100 is a user-friendly, space-saving dual Nano SIM card connector with a push-push tray design, offering vibration resistance and continuous signal performance. Featuring a card friction lock and foolproof design, it ensures proper tray installation with SIM 1 facing up and includes a tray lock function for added stability and shock resistance. The separate tray prevents reverse insertion for accurate mating and is reliable in diverse environments.

***Patent Cert. No.: TWM625102, CN217036175U
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
115U-B100 Main feature

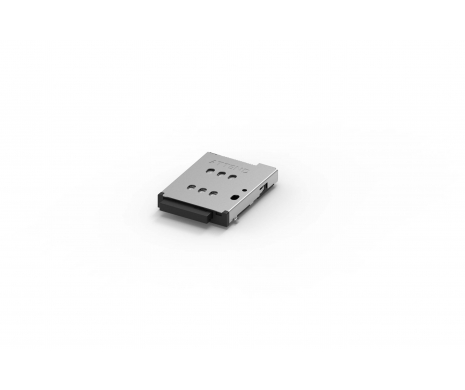

  • Tray Push-Push Type Dual Nano-SIM Socket (Tray is separated)
  • Card detection and tray insertion with anti-reverse protection
  • Extended 6mm ejection length for easy card removal
  • 2mm tray edge for adaptable panel/casing design
  • Tray lock function for robustness against shock
  • Tested to 5,000 mating cycles
  • Operating temperature: -40°C to +85°C
  • Passed EN60721-3-5 Class 5M3 random vibration and Level II shock tests

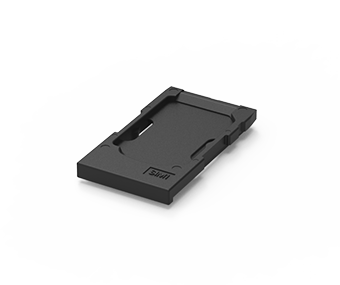

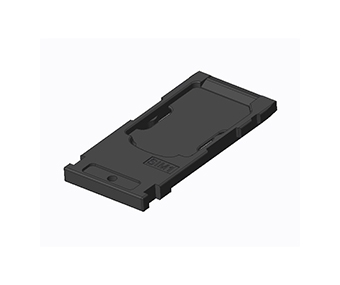

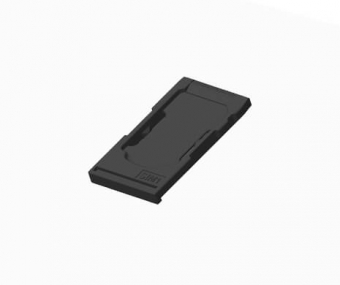

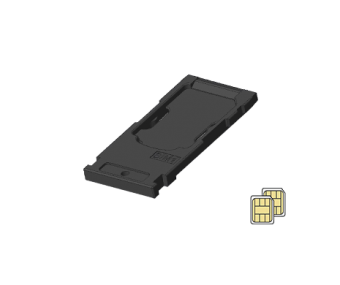

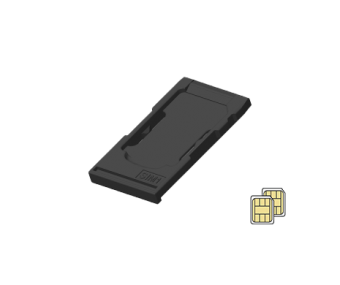

ATTEND’s Tray Push-Push series offers two models to choose from: the 115U-A101, which supports a single Nano SIM card connector, and the 115U-B100, which supports dual Nano SIM card connectors. Both models are designed for easy installation while maintaining robust, vibration-resistant features suitable for industrial and automotive applications. To complete a purchase, make sure to also acquire the 115U-T001 (for use with the 115U-A101) and the 115U-T003 (for use with the 115U-B100) trays.


APPLICATIONS
automotive
  • Telematics and V2X
  • IIoT
  • Smart meter
  • Gateway and Router
  • M2M
  • Mobile devices
  • Security and surveillance
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating10V DC
Contact Resistance100mΩ Max.
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability5,000 Cycle
Contact Normal Force0.3N Min. per pin
Tray Withdrawal Force2N Min.
ENVIRONMENTAL
Operating temperature range-40°C~+105°C
Storage temperature range-40°C~+105°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115U-B100769 KBPDF: DrawingDownload
3D115U-B100787 KBRAR: 3D FileDownload
Drawing115U-T003155 KBPDF: DrawingDownload
Datasheet115U-B100313 KBPDF:SpecDownload
Drawing115U-T005159 KBPDF: DrawingDownload
3D115U-T003138 KBRAR: 3D FileDownload
3D115U-T005119 KBRAR: 3D FileDownload
