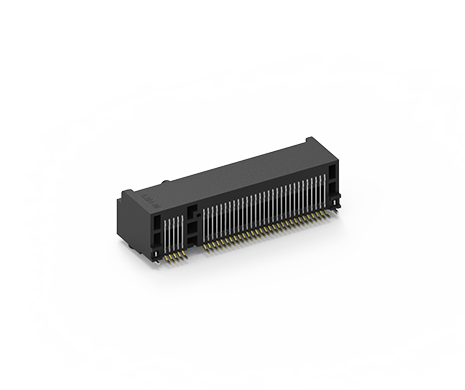

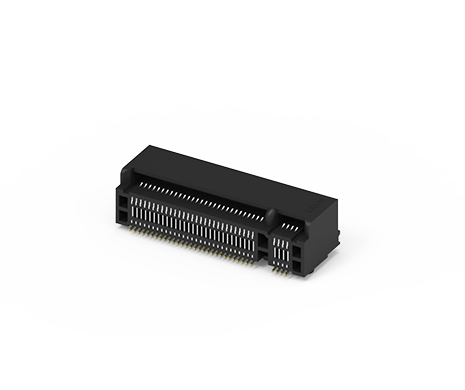

M.2 Connector M Key, H=5.8mm, Gen4
123A-58M01
M.2 Connector, M Key, H=5.8mm, Gen4, 0.5 Pitch, GF

ATTEND's M.2 next generation form factor (NGFF) connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
MAIN FEATURES
  • Height range: 2.1 mm to 8.5 mm
  • A, B, E, and M keying options for module cards
  • One-action latch for time and cost savings
  • PCI-SIG PCIe M.2 specification compliant
  • 0.5 mm pitch featuring sixty-seven contact points
M.2 Connector are two key dimension need to check.
There are two key dimension need to check.
Dim. A
The heights are between min- 2.1mm to max- 8.5mm.
Dim. B
For double-sided modules, this height is also important to keep in mind.

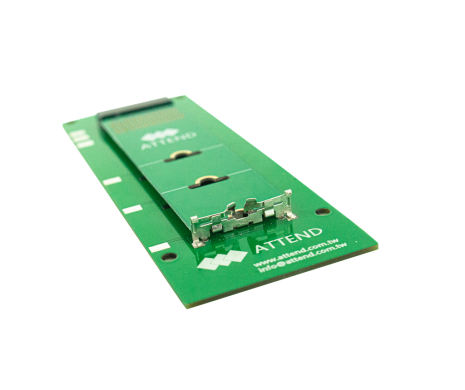

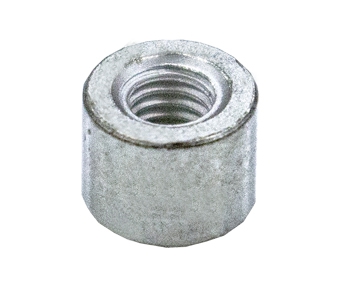

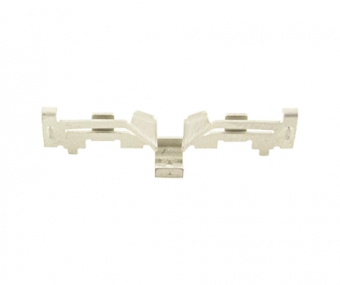

Quick Installation Solutions for M.2 Connectors
Quick Installation Solutions for M.2 Connectors
Industrial PCs
APPLICATION:
  • Data storage
  • Servers
  • Industrial PCs
  • IoT
M.2 Connector Types
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating50VAC
Contact Resistance55mΩ, Δ20Ω Max.
Insulation Resistance500MΩ
Dielectric Withstanding Voltage300VAC
MECHANICAL
Durability60 Cycle
Mating Force20N max.
Un-mating Force20N max.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow(Wave Soldering) Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing123A-58M01215 KBPDF: DrawingDownload
3D123A-58M01718 KBRAR: 3D FileDownload
Drawing123A-XXL1159 KBPDF: DrawingDownload
Datasheet123A-58X01348 KBPDF:SpecDownload
3D123A-58L191 KBRAR: 3D FileDownload
