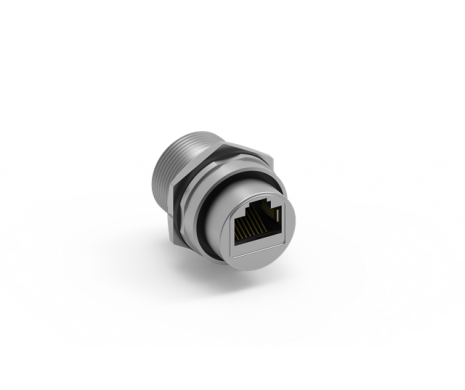

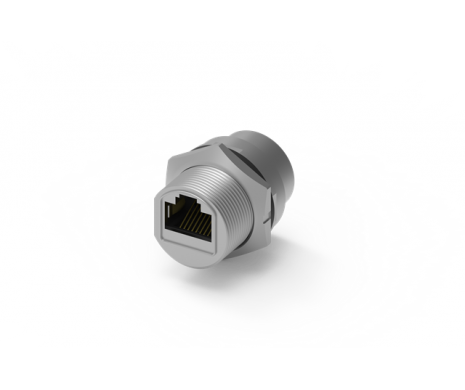

RJ45 Jack to Jack Waterproof Adaptor, Screw Type

222A-03005

RJ45 Jack to Jack Waterproof Adaptor, Screw Type, Zinc Alloy L=30mm

The sealed I/O connector enables use under the rugged environmental conditions, Through the potting of electronics in a compact plastic or metal housing with sealed connectors. Our sealed I/O series reaching the protection class IPX7, to ensure your digital information, voltages power can be safely continued transmission under a harsh environment.

AVAILABLE ACCESSORIES

MAIN FEATURES

Current rating: 1.5 A (with PCB/adapter type), 2.0 A (straight PCB type)
Voltage rating: 125 V (with PCB/adapter type), 250 V (straight PCB type), AC/DC
Waterproof level: IPX7
High corrosion resistance (salt mist, sterilization, chemicals)
Integrated kit can be applied to off-the-shelf RJ45 patch cords
Operating temperature range: -40°C to +85°C

APPLICATION:

Rugged environmental
Outdoor usage
Automotive
Industrial
Communication
Factory automation
Marine

SPECIFICATION

ELECTRICAL
Current Rating	1.5A
Voltage Rating	125V AC

ENVIRONMENTAL
Operating temperature range	-40°C~+85°C
Waterproof Level	IP67

DOWNLOAD

CATEGORY	TITLE	SIZE	FILE TYPE
Drawing	222A-03003	117 KB	PDF: Drawing
3D	222A-03003	365 KB	RAR: 3D File
3D	222A-03005	553 KB	RAR: 3D File
Drawing	222A-03005	55 KB	PDF: Drawing
Drawing	222-0004	53 KB	PDF: Drawing
