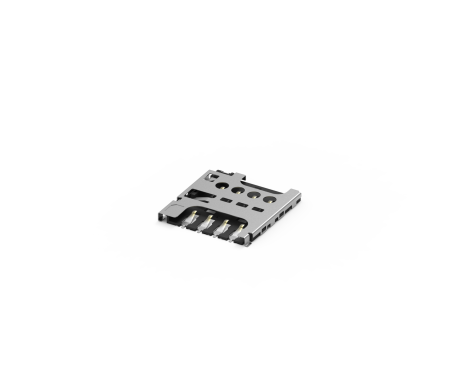

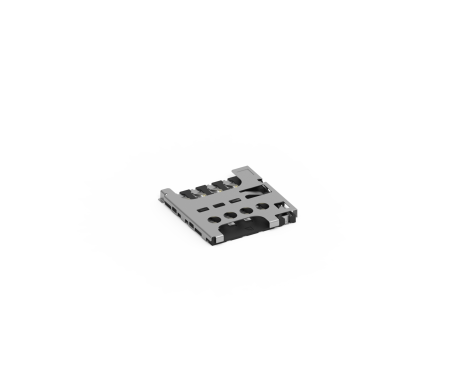

Micro SIM Socket, Push-Pull Type
115I-BEAA-RA1
Micro SIM Card Socket, Push-Pull Type, 8 Pin, 15u'', w/shell

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
Share:
MAIN FEATURES
*
APPLICATION:
  • IIOT
  • WIFI Module
  • Smart Meter
  • LTE Router
  • IPC / POS
  • Vehicle Tracking
SPECIFICATION
ELECTRICAL
Current Rating0.5A
Voltage Rating10VDC
Contact Resistance100mΩ Max
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC for 1 minute
MECHANICAL
Terminal Durability500 Cycle
Contact Normal Force0.3N~0.35N
Insert Force10N
Withdrawal Force0.5N
ENVIRONMENTAL
Operating temperature range-40°C to +85°C
Storage temperature range-40°C to +85°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C 10Sec
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115I-BEAA-RA1334 KBPDF: DrawingDownload
3D115I-BEAA-RA1294 KBRAR: 3D FileDownload
Datasheet115I-BEAA-RA1290 KBPDF:SpecDownload
