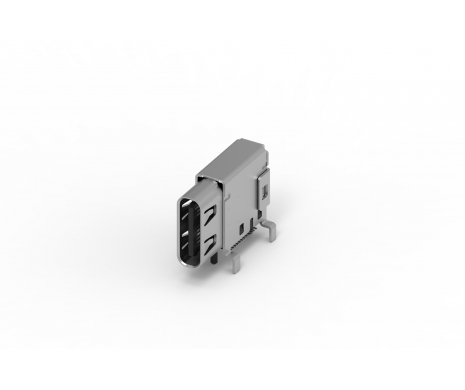

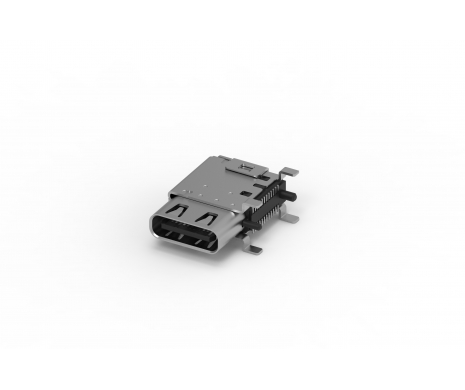

USB Type C Flank Receptacle, T/H w/SMD
217E-BA01
USB Type C Flank Receptacle, 24Pin T/H w/SMD, G/F
USB Type-C is a 24-pin USB connector system featuring a reversible design, allowing users to insert the connector without worrying about orientation. ATTEND’s USB Type-C connector series offers PCB designers optimal flexibility and space-saving solutions, supporting high-frequency plug-in cycles with Power Delivery up to 100W. This ensures reliable, high-performance connections and fast charging for a variety of devices.
USB Type-C is a 24-pin USB connector system featuring a reversible design, allowing users to insert the connector without worrying about orientation. ATTEND’s USB Type-C connector series offers PCB designers optimal flexibility and space-saving solutions, supporting high-frequency plug-in cycles with Power Delivery up to 100W. This ensures reliable, high-performance connections and fast charging for a variety of devices.
Share:
MAIN FEATURES
APPLICATIONS
- Rugged environmental
- Outdoor usage
- Automotive
- Industrial
- Communication
- Factory automation
- Home application
- Marine
- Data storage
- Compact handheld devices
SPECIFICATION
| Current Rating | 5A MAX. |
|---|---|
| Voltage Rating | 20V DC |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217E-BA01 | 164 KB | PDF: Drawing |  |
| 3D | 217E-BA01 | 670 KB | RAR: 3D File | |
| Datasheet | 217E-BA01 Spec | 253 KB | PDF:Spec | |
