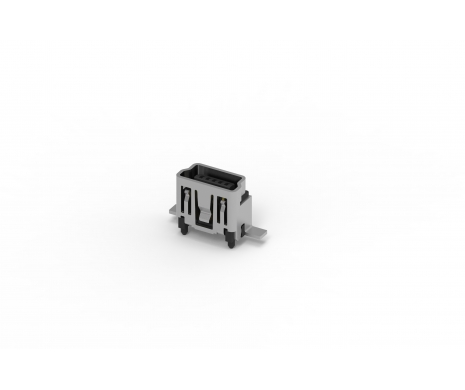

Mini USB 2.0, B Type, Vertical SMT Type
202G-FDN0-R
Mini USB 2.0, B Type Receptacle, Vertical, SMT, 10u''
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
Share:
SPECIFICATION
| Current Rating | 1A |
|---|---|
| Voltage Rating | 30VAC/DC |
| Contact Rating | 50mΩ Max. |
| Insulation Resistance | 1000MΩ Min. 500VDC |
| Dielectric Withstanding Voltage | 500VAC for 1 minute |
| Durability | 5,000 Cycle |
|---|---|
| Insertion Force | 3.57 Kfg Max. |
| Extraction Force | 0.71Kgf Min. |
| Operating temperature range | -20℃~+85℃ |
|---|---|
| Storage temperature range | -20℃~+60℃ |
| Recommended IR Reflow Temperature | 260℃± 5℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 202G-FDN0-R | 225 KB | PDF: Drawing |  |
| 3D | 202G-FDN0-R | 143 KB | RAR: 3D File | |
