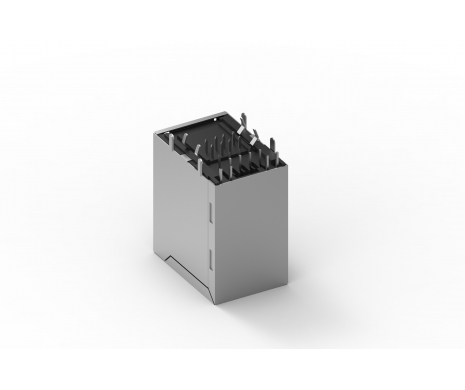

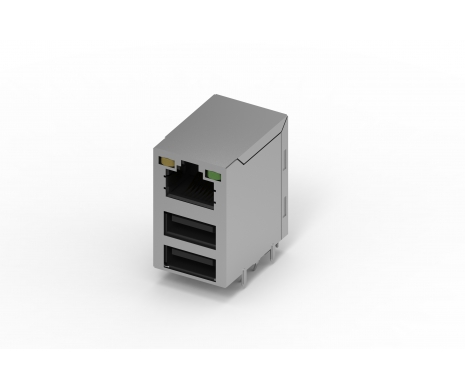

Combo USB, Dual USB 2.0 + RJ45 Magnetic, R/A DIP Type
205G-CCN0
Combo USB, Dual USB 2.0 + RJ45 Magnetic, Right Angle, DIP, GF
ATTEND 205G-CCN0 combo USB is combined with two USB 2.0 port and RJ45 Magnetic connectors together that design for effectively save the PCB layout space and decrease the product size.
ATTEND 205G-CCN0 combo USB is combined with two USB 2.0 port and RJ45 Magnetic connectors together that design for effectively save the PCB layout space and decrease the product size.
Share:
SPECIFICATION
Current Rating | 1A per pin |
---|---|
Voltage Rating | 150VAC |
Contact Resistance | 50mΩ |
Insulation Resistance | 500MΩ |
Dielectric Withstanding Voltage | 1KVrms at 60Hz, 1 minute between adjacent contacts |
Dielectric Withstanding Voltage | 1.5KVrms at 60Hz,1 minute between shield and contacts |
Durability | 750 Cycle |
---|
Operating temperature range | -40℃~+85℃ |
---|---|
Storage temperature range | -40℃~+85℃ |
Recommended IR Reflow Temperature | 260℃ |
---|---|
Recommended PCB Thickness | 260℃ |
