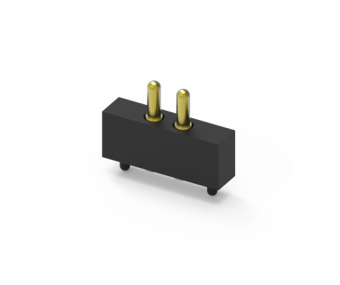

Pogo Pin, Right Angle, XX Pin, 2.54P, 10u'', 2.5H, Cap, DIP
303B-411806-254-XX
Pogo Pin, Right Angle, XX Pin, 2.54P, 10u'', 2.5H, Cap, DIP
A pogo pin or spring-loaded pin is a type of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.
Pogo pin combines the advantages of fine pitch, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
A pogo pin or spring-loaded pin is a type of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.
Pogo pin combines the advantages of fine pitch, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
Share:
MAIN FEATURES
Conclusion:
- High Stroke
- High Durability
- Long Lifetime
- Ease of Attaching
- Stable Current Flow
Application:
- Antenna
- Board To Board Connection
- Medical Device
- Tracking Device
- Portable Device
.png)
SPECIFICATION
| Current Rating | 2A |
|---|---|
| Voltage Rating | 30V |
| Contact Resistance | 50mΩ Max. at working height |
| Durability | 10,000 Cycle |
|---|---|
| Spring Force | 0.85N±0.2N at working height |
- To avoid arcing issue, the adaptor start to power supply after connector mated fully.
- Based on Engineer drawing, shall not exceed one the working height the maximum allowed compress.
- To ensure the best usage, please operate it based supply after connector mated fully.
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 303B-411806-254-XX | 196 KB | PDF: Drawing |  |
| 3D | 303B-411806-254-XX | 34 KB | RAR: 3D File | |
