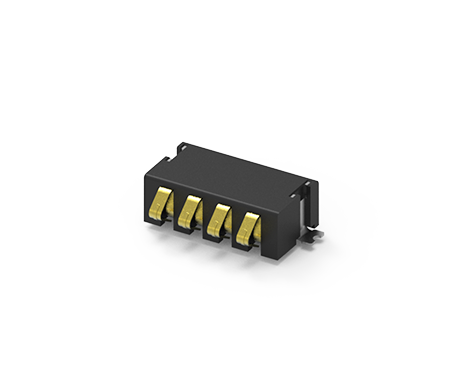

Battery Connector, R/A, SMT, Pitch 2.5, H=4.0, XX Pin, 5u''
304C-4025XX
Battery Connector, R/A, SMT, Pitch 2.5, H=4.0, XX Pin, 5u''
Battery connectors are crucial for ensuring a secure and reliable electrical connection between batteries and powered devices, making them essential components in modern electronic systems across industries. ATTEND’s flexible designs and production capabilities accommodate pitch sizes of 2.5 mm and various pin configurations and stack heights in battery connectors. These connectors boast a durability of 5,000 mating cycles, significantly enhancing their mechanical performance and longevity. Additionally, ATTEND’s battery connectors are designed to ensure reliable electrical connections and are suitable for a wide range of applications, from consumer electronics to industrial equipment. Their robust construction and adaptability make them ideal for devices requiring consistent and efficient power delivery.
Battery connectors are crucial for ensuring a secure and reliable electrical connection between batteries and powered devices, making them essential components in modern electronic systems across industries. ATTEND’s flexible designs and production capabilities accommodate pitch sizes of 2.5 mm and various pin configurations and stack heights in battery connectors. These connectors boast a durability of 5,000 mating cycles, significantly enhancing their mechanical performance and longevity. Additionally, ATTEND’s battery connectors are designed to ensure reliable electrical connections and are suitable for a wide range of applications, from consumer electronics to industrial equipment. Their robust construction and adaptability make them ideal for devices requiring consistent and efficient power delivery.
Share:
MAIN FEATURES
- Supports up to 5,000 mating cycles, ensuring long-lasting performance
- Available in various pitch sizes, pin configurations, and stack heights
- Offers both through-hole and surface mount (SMT) options
- Provides stable electrical and mechanical connections
- Suitable for a wide range of applications, from consumer electronics to industrial equipment
APPLICATIONS
- Consumer electronics
- Industrial equipment
- Automotive electronics
- Medical devices
- Telecommunications
- Renewable energy
- Consumer appliances
SPECIFICATION
| Current Rating | 3.5A |
|---|---|
| Voltage Rating | 12V |
| Contact Resistance | 40mΩ Max. |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 5,000 Cycle |
|---|---|
| Normal Force | 200g Max. at Working Location |
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | - 40°C~+105°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 304C-4025XX | 69 KB | PDF: Drawing |  |
| 3D | 304C-4025XX | 160 KB | RAR: 3D File | |
| Datasheet | 304C-4025XX Spec | 287 KB | PDF:Spec | |
