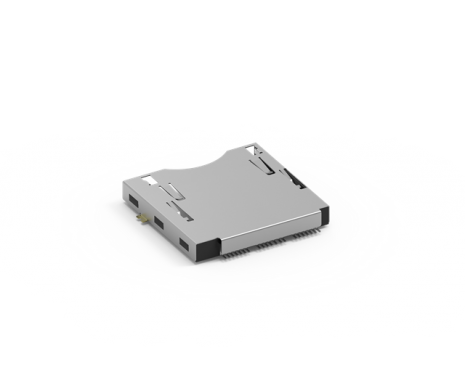

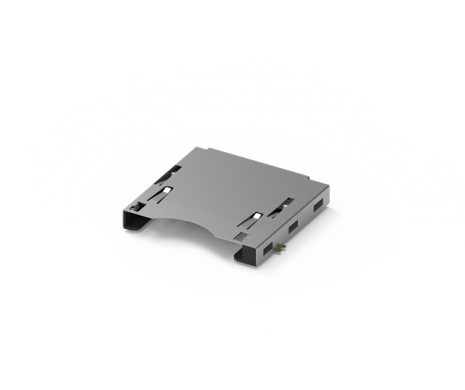

CFexpress Type B Socket, Push-Pull Type
101M-TE20
CFexpress Type B Host Socket, Push-Pull Type, 15u''
ATTEND's CFexpress Memory Card Sockets combines the compact form factor of XQD cards with a high-speed PCIe® interface and it utilizes the NVMe protocol to ensure efficient communication between the card and the host device. The 101M series CFexpress type B host socket supports data transfer speeds of up to 2,000 MB/s. It is designed to cater to the needs of professional photographers and videographers who require rapid and reliable storage solutions.
ATTEND's CFexpress Memory Card Sockets combines the compact form factor of XQD cards with a high-speed PCIe® interface and it utilizes the NVMe protocol to ensure efficient communication between the card and the host device. The 101M series CFexpress type B host socket supports data transfer speeds of up to 2,000 MB/s. It is designed to cater to the needs of professional photographers and videographers who require rapid and reliable storage solutions.
Share:
- 分享至LINE
- 分享至Twitter
- 分享至Pinterest
- 分享至Facebook
- 分享至Iinkedin
- 扫一扫分享至微信
扫一扫分享至微信
MAIN FEATURES
- Type B host socket compatible PCIe Gen3 x2 (2,000 MB/s)
- Push-push and push-pull options are available with or without a lock and are suitable for many applications
Application:
- Industrial equipment
- In-vehicle computers
- Digital cinema cameras
- High-end DSLRs
- Recorders
COMPARISON TABLE
SPECIFICATION
| Current Rating | 0.5A |
|---|---|
| Voltage Rating | 5VDC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Operating temperature range | -25℃~+85℃ |
|---|
| Recommended IR Reflow Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 101M-TE20 | 99 KB | PDF: Drawing |  |
| 3D | 101M-TE20 | 228 KB | RAR: 3D File | |
| Datasheet | 101M-TEX0 | 263 KB | PDF:Spec | |
