CFexpress Type B Socket, Push-Push Type
101M-TE10

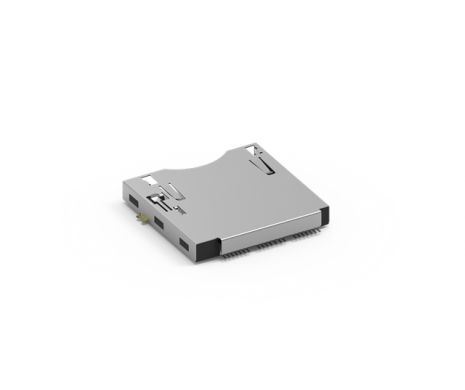

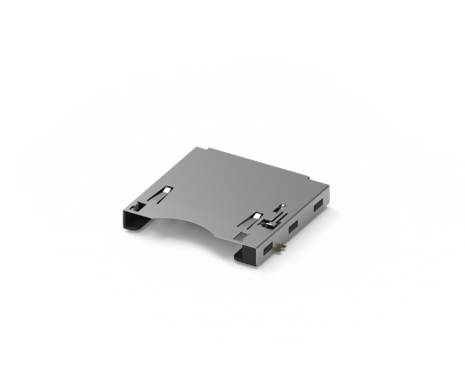

CFexpress Type B Host Socket, Push-Push Type, 15u''

ATTEND's CFexpress Memory Card Sockets combines the compact form factor of XQD cards with a high-speed PCIe® interface and it utilizes the NVMe protocol to ensure efficient communication between the card and the host device. The 101M series CFexpress type B host socket supports data transfer speeds of up to 2,000 MB/s. It is designed to cater to the needs of professional photographers and videographers who require rapid and reliable storage solutions.
MAIN FEATURES
*
  • Type B host socket compatible PCIe Gen3 x2 (2,000 MB/s)
  • Push-push and push-pull options are available with or without a lock and are suitable for many applications
*
Application:
  • Industrial equipment
  • In-vehicle computers
  • Digital cinema cameras
  • High-end DSLRs
  • Recorders
COMPARISON TABLE
*
SPECIFICATION
ELECTRICAL
Current Rating0.5A
Voltage Rating5VDC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
ENVIRONMENTAL
Operating temperature range-25℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing101M-TE1081 KBPDF: DrawingDownload
3D101M-TE10233 KBRAR: 3D FileDownload
Datasheet101M-TE10263 KBPDF:SpecDownload
