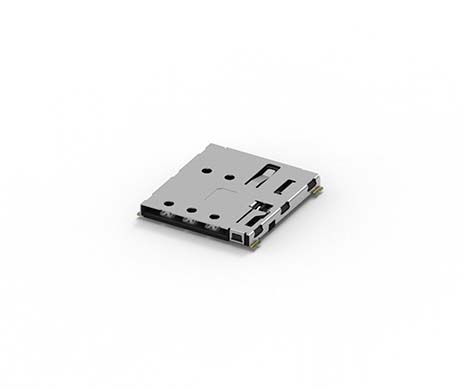

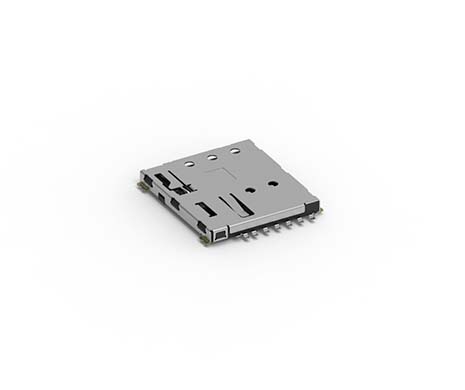

Nano SIM Socket, Push Push Type

115U-A103

Nano SIM Socket, Push Push Type, 6 Pin, H=1.4mm, G/F

ATTEND’s Nano SIM Socket offers efficient, reliable SIM card connectivity in compact devices. With a 6-pin configuration and 1.4mm height, it ensures secure card retention and smooth insertion/removal. Gold-finished (G/F) contacts provide excellent durability and corrosion resistance, making it ideal for portable devices, IoT applications, and industrial equipment. This socket delivers consistent performance in demanding environments, making it the perfect solution for space-saving designs needing robust SIM card connections.

MAIN FEATURES

APPLICATION:

IIOT
WIFI Module
Smart Meter
LTE Router
IPC / POS
Vehicle Tracking

SPECIFICATION

ELECTRICAL
Current Rating	0.5A max.
Voltage Rating	10VDC
Contact Resistance	100mΩ Max.
Insulation Resistance	1000MΩ
Dielectric Withstanding Voltage	500VAC

MECHANICAL
Durability	5,000 Cycle
Insertion Force	10N Max.

Withdrawal Force	0.5N Min.

ENVIRONMENTAL
Operating temperature range	-40°C~+85°C
Storage temperature range	-40°C~+85°C

SOLDER ABILITY
Recommended IR Reflow Temperature	260°C

DOWNLOAD

CATEGORY	TITLE	SIZE	FILE TYPE
Drawing	115U-A103	79 KB	PDF: Drawing
3D	115U-A103	610 KB	RAR: 3D File
Datasheet	115U-A103	312 KB	PDF:Spec
