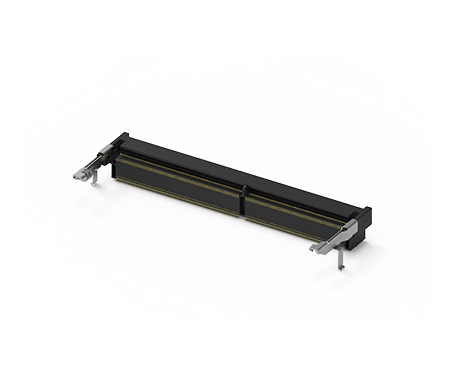

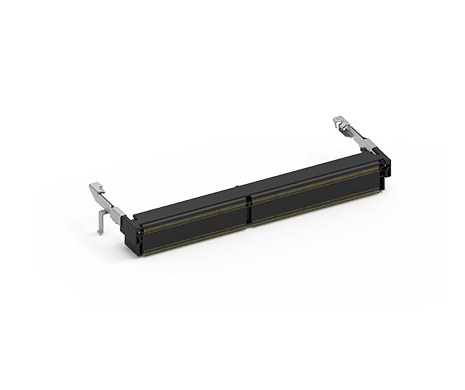

DDR4 SODIMM Socket, Horizontal 9.2H, RVS
124A-92A13
DDR4 SODIMM Socket, Horizontal 9.2H, RVS, G/F, Black, Reel, Solder PEG
Since SO-DIMM roughly half the size of regular DIMMs, it often used in systems with limited space, such as laptops, notebooks, small-footprint personal computers, high-end upgradable office printers, and networking hardware...etc. ATTEND offers various selections from DDR2 to DDR4 with different types, including vertical and standard type.
Since SO-DIMM roughly half the size of regular DIMMs, it often used in systems with limited space, such as laptops, notebooks, small-footprint personal computers, high-end upgradable office printers, and networking hardware...etc. ATTEND offers various selections from DDR2 to DDR4 with different types, including vertical and standard type.
Share:
SPECIFICATION
Current Rating | 0.6A per pin |
---|---|
Voltage Rating | 25V AC/DC |
Contact Resistance | 60mΩ |
Insulation Resistance | 100MΩ |
Dielectric Withstanding Voltage | 500VAC |
Durability | 50 Cycle |
---|---|
Insertion Force | 59.8N Max. |
Extraction Force | 44.6N Max. |
Operating temperature range | -40℃~+85℃ |
---|---|
Storage temperature range | -40℃~+85℃ |
Recommended IR Reflow Temperature | 260℃ |
---|
