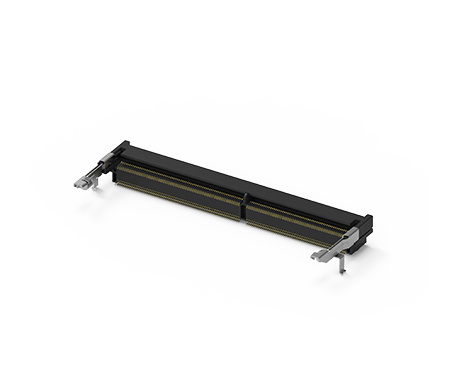

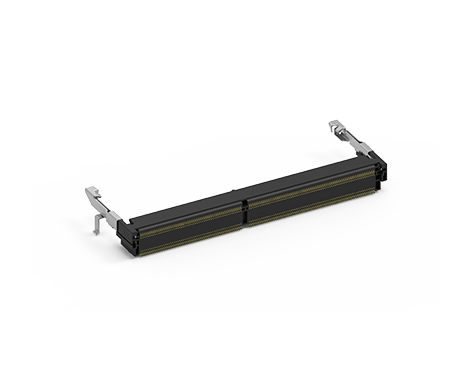

DDR4 SODIMM Socket, Horizontal 8.0H, RVS
124A-80A13
DDR4 SODIMM Socket, Horizontal 8.0H, RVS, G/F, Black, Reel, Solder PEG

Since SO-DIMM roughly half the size of regular DIMMs, it often used in systems with limited space, such as laptops, notebooks, small-footprint personal computers, high-end upgradable office printers, and networking hardware...etc. ATTEND offers various selections from DDR2 to DDR4 with different types, including vertical and standard type.
SPECIFICATION
ELECTRICAL
Current Rating0.6A per pin
Voltage Rating25V AC/DC
Contact Resistance60mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability50 Cycle
Insertion Force59.8N Max.
Extraction Force44.6N Max.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
3D124A-80A132584 KBRAR: 3D FileDownload
Drawing124A-80A13474 KBPDF: DrawingDownload
Datasheet124A Series Spec314 KBPDF:SpecDownload
