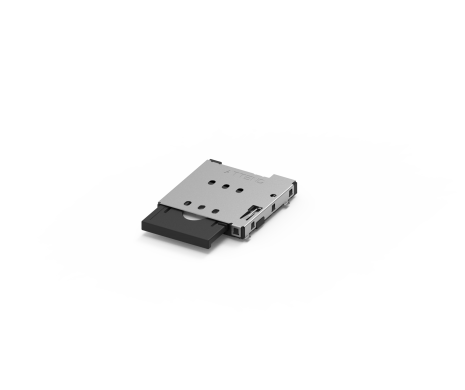

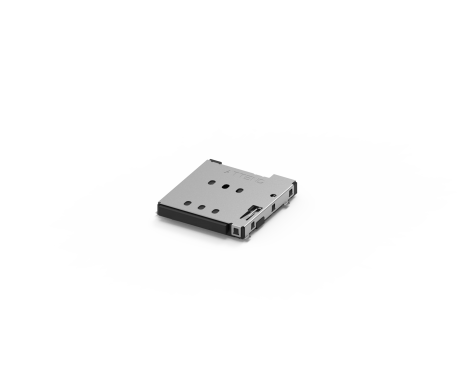

Nano SIM Socket, Tray-Push Push
115U-A101
Nano SIM Socket, Tray-Push Push Type, 6 Pin, G/F

Discover ATTEND’s Nano SIM Card Socket, featuring a Tray Push-Push Type with Lock, engineered for high vibration resistance and secure card retention. The 2mm exposed tray edge suits panel and casing designs. ATTEND offers durable SIM card connections, ideal for In-Vehicle Infotainment (IVI), IoT systems, and industrial applications. This advanced design ensures reliability in compact, space-efficient connectivity solutions.

***Patent Cert. No.: TWM607512, CN216598210U
Share:

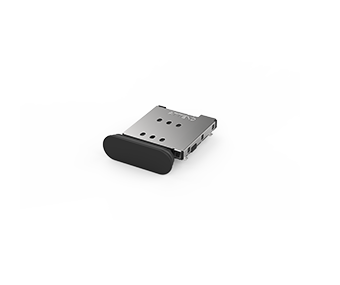

AVAILABLE ACCESSORIES
MAIN FEATURES

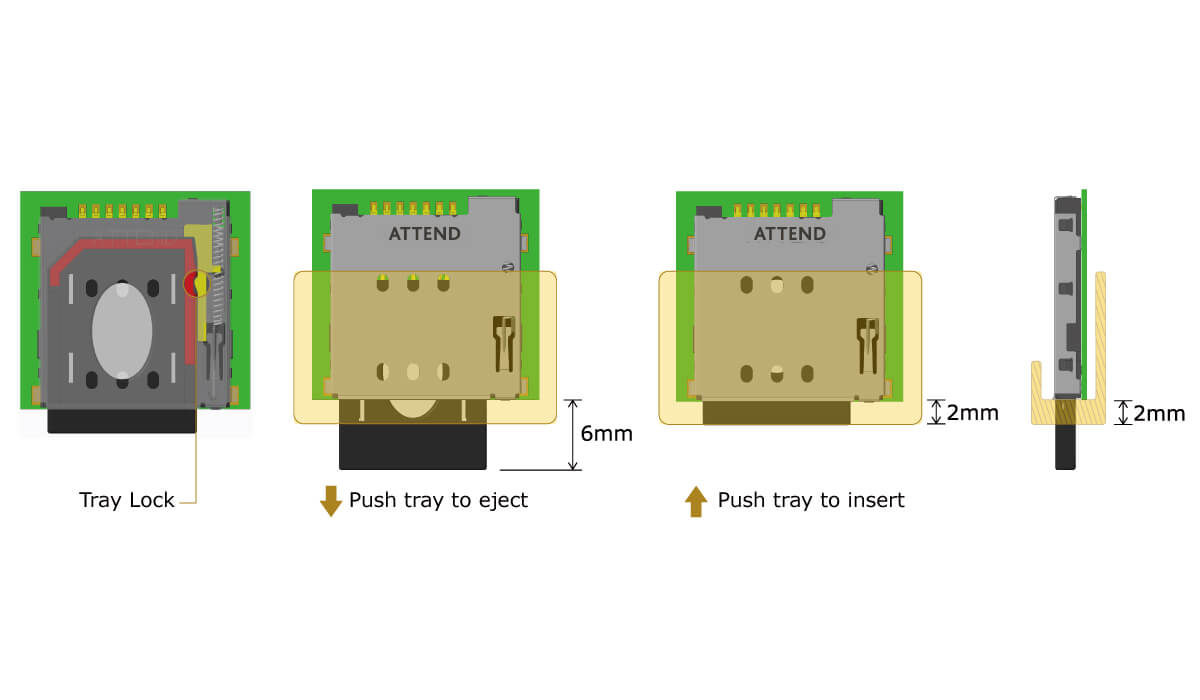

115U-A101 Main Feature

ATTEND has provided a targeted solution and performed tests, proving that the 115U-A101 can withstand vibration and shock in compliance with EN60721-3-5 class 5M3 standards, ensuring stable and reliable performance in harsh environments.

  • Strong vibration resistance for demanding environments
  • Flexible panel/casing design to accommodate various application needs
  • Easy card insertion and removal for convenient operation

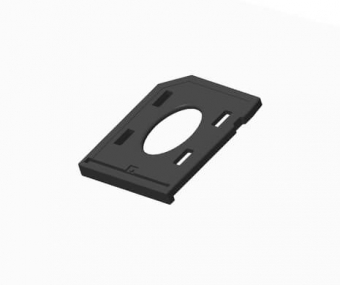

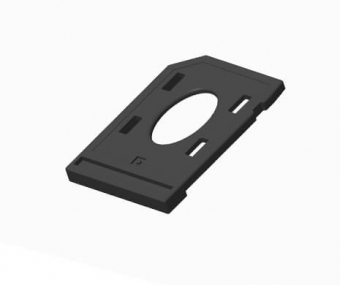

ATTEND’s Tray Push-Push series offers two models to choose from: the 115U-A101, which supports a single Nano SIM card connector, and the 115U-B100, which supports dual Nano SIM card connectors. Both models are designed for easy installation while maintaining robust, vibration-resistant features suitable for industrial and automotive applications. To complete a purchase, make sure to also acquire the 115U-T001 (for use with the 115U-A101) and the 115U-T003 (for use with the 115U-B100) trays.
APPLICATIONS
Automotive
  • Telematics and V2X
  • IIoT
  • Smart meters
  • Gateways and routers
  • M2M
  • Mobile devices
  • Security and surveillance
SPECIFICATION
ELECTRICAL
Current Rating0.5A max.
Voltage Rating10VAC/DC
Contact Resistance50mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability5,000 Cycle
Contact Normal Force0.5N Max. per pin
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range- 40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115U-A101399 KBPDF: DrawingDownload
3D115U-A101572 KBRAR: 3D FileDownload
Drawing115U-T00193 KBPDF: DrawingDownload
3D115U-T001290 KBRAR: 3D FileDownload
Datasheet115U-A101313 KBPDF:SpecDownload
