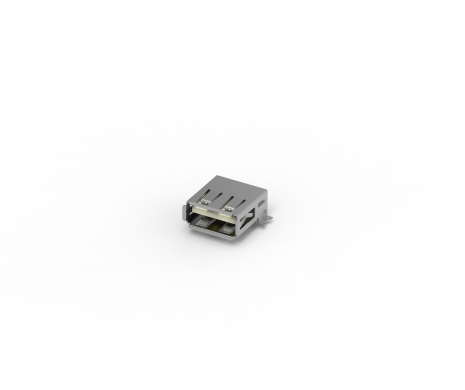

USB2.0 A Type, Top Mount, SMT Type
205B-SAN0-R
USB 2.0, A Type Receptacle, Top Mount, SMT Type
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier, and other additional types. ATTEND offers a full range of USB selection for designing which focuses on stability, durability, and affordability.
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier, and other additional types. ATTEND offers a full range of USB selection for designing which focuses on stability, durability, and affordability.
Share:
SPECIFICATION
| Voltage Rating | 1.5A at 250VAC |
|---|---|
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 1,500 Cycle |
|---|---|
| Insertion Force | 35N max. |
| Extraction Force | 10N min. |
| Operating temperature range | -55°C~+85°C |
|---|---|
| Storage temperature range | - 55°C~+85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 205B-SAN0-R | 93 KB | PDF: Drawing |  |
