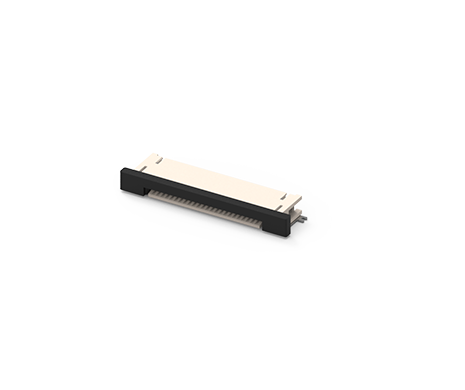

FPC Connector, Slide Type, Horizontal, Pitch:0.5mm, H:2.0mm
311A-XXLAA-R
FPC Connector, Slide Type, Horizontal, Pitch:0.5mm, H:2.0mm

Flexible Printed Circuit (FPC) Connector is suitable for the application which needs to connect serial or graphical LCD to the motherboard with the demand of limited space, smaller centerline or pitch spacing, because it’s lower profile heights, and lighter interconnect. ATTEND offers a wide range of pin options and mounting types for you to fit with your application design, including Slide and Flip-lock type.
SPECIFICATION
Specification
Sizes60 Pins For 0.3mm Thickness FFC/FPC
Voltage50V Max. Current 0.5A Max.
Contact Resistance20 Milliohms Max.
Insulation Resistance50 Megaohms Min.
Dielectric Withstanding Voltage250V AC
Temperature-40℃~+85℃
Material and Finish
HousingPA-46 UL 94V-0
ActuatorPPS UL 94V-0
ContactPhosphor Bronze
Hold-downBrass Plating: 100u" Tin, Over 50u" Ni
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing311A-XXLAA-R472 KBPDF: DrawingDownload
3D311A-XXLAA-R582 KBRAR: 3D FileDownload
