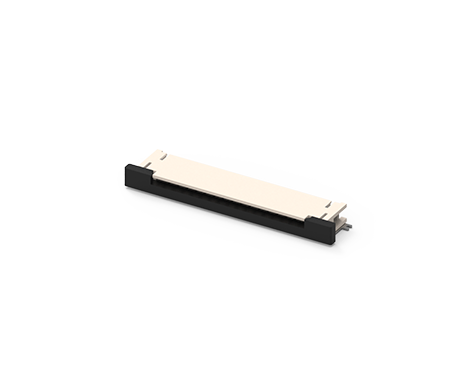

FPC Connector, Slide, Horizontal, 1.0mm Pitch, H2.0mm

311B-XXUAA-R

FPC Connector, Slide Type, Horizontal, Pitch:1.0mm, H:2.0mm

Flexible Printed Circuit (FPC) Connector is suitable for the application which needs to connect serial or graphical LCD to the motherboard with the demand of limited space, smaller centerline or pitch spacing, because it’s lower profile heights, and lighter interconnect. ATTEND offers a wide range of pin options and mounting types for you to fit with your application design, including Slide and Flip-lock type.

SPECIFICATION

Specification
Sizes	60 Pins For 0.3mm Thickness FFC/FPC
Voltage	50V Max. Current 0.5A Max.
Contact Resistance	20 Milliohms Max.
Insulation Resistance	50 Megaohms Min.
Dielectric Withstanding Voltage	250V AC
Temperature	-40℃~+85℃
