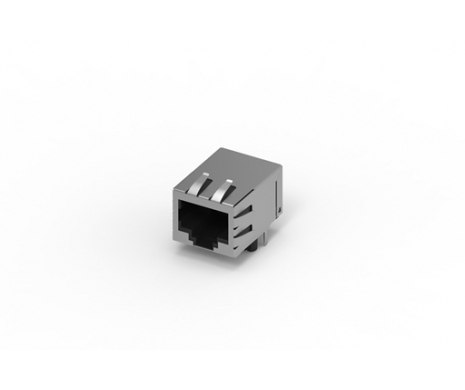

RJ45 R/A Bottom Latch, DIP, w/ EMI, w/o LED
210A-11C0A-R
RJ45 Right Angle, Bottom Latch, DIP, w/ EMI, w/o LED, 5u''
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Current Rating | 1.5AMP |
|---|---|
| Voltage Rating | 125VAC RMS. |
| Contact Resistance | 45 Milliohms MAX. |
| Insulation Resistance | 1000 Megohms MIN@500 VDC |
| Dielectric Withstanding Voltage | 1000 VDC RMS 60Hz, 1MIN |
| Housing Material | Glass Filled Polyester or High Temp. UL94V-0. |
|---|---|
| Contact Material | Phosphor Bronze φ0.46mm . |
| Plating | Gold Plating over Nickel. |
| Shield Plating | Nickel Plating over Brass. |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-Solder | 1 LB Min. |
| PCB Retention Post-Solder | 10 LBS Min. |
| Storage Temperature | -40℃ to +70℃ |
|---|---|
| Operation Temperature | 0℃ to +70℃ |
| Wave Solding Temperature | 225℃~265℃(5~10 Seconds) |
| Wave Solding Temperature | Mates with Modular Plug Conforming to FCC Part 68, Subpart F. |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 210A-11C0A-R | 91 KB | PDF: Drawing |  |
