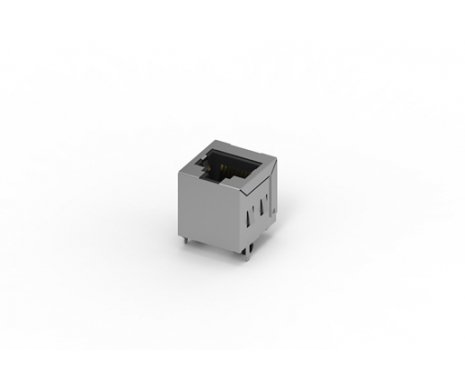

RJ45 Vertical DIP, w/EMI, w/o LED, 5u"
210A-11C0A-RA10
Vertical, DIP, w/EMI, w/o LED, 5u"
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
Current Rating | 1.5AMP |
---|---|
Voltage Rating | 125VAC |
Contact Rating | 30mΩ Max. |
Insulation Resistance | 1000MΩMin. |
Dielectric Withstanding Voltage | 1000VAC 60Hz 1Minute |
Durability | 750 Cycle |
---|
Operating TemperatureRange | -40℃ to +85℃ |
---|---|
Storage Temperature Range | -40℃ to +85℃ |
Recommended Wave Soldering Temperature | 260℃ |
---|---|
Recommended PCB Thickness | 1.6mm |
PCB Retention Pre-solder | 1LB Min. |
PCB Retention Post-solder | 10LB Min. |
