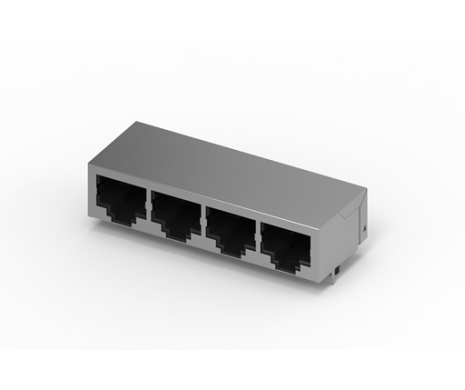

RJ45 1x4 R/A, Bottom Latch, DIP, w/o EMI / LED
210A-14C0B-R
1x4, Right Angle, Bottom Latch, DIP, w/o EMI / LED, 5u"
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Current Rating | 1.5AMP. |
|---|---|
| Voltage Rating | 125 VAC RMS |
| Contact Resistance | 35Milliohms Max. |
| Insulation Resistance | 1000 Megohms Min. @ 500 VDC |
| DielectricStrength | 1000 VAC RMS 60Hz 1Minute |
| Housing Material | High Temp. UL94V-0, Black |
|---|---|
| Contact Material | Phosphor Bronze t: 0.35mm. |
| Plating | Gold Plating Over Nickel |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-solder | 1 LB Min. |
| PCB Retention Post-solder | 10 LBS Min. |
| Operating TemperatureRange | -0℃~+70℃ |
|---|---|
| Storage Temperature Range | -40℃~+85℃ |
| Storage Temperature Range | Mate with Modular Plug Conforming to FCC PART 68, SUBPART F |
| Recommended Wave Soldering Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.6mm |
| PCB Retention Pre-solder | 1LB Min. |
| PCB Retention Post-solder | 10LB Min. |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 210A-14C0B-R | 92 KB | PDF: Drawing |  |
| 3D | 210A-14C0B-R | 786 KB | RAR: 3D File | |
