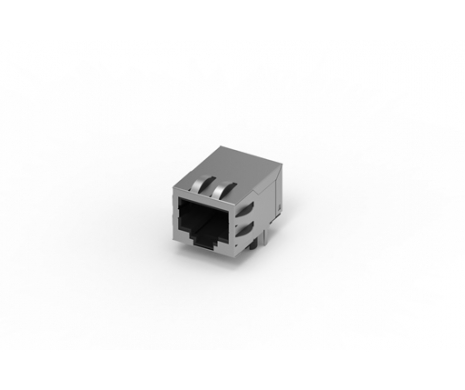

RJ45 Cat5e R/A, Bottom Latch, DIP, w/ EMI, w/o LED
210C-11CA0
Cat 5e, Right Angle, Bottom Latch, DIP, w/ EMI, w/o LED, 5u"
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 125VAC |
| Contact Resistance | 60mΩ |
| Insulation Resistance | 1,000MΩ |
| Dielectric Withstanding Voltage | 1,000VAC |
| Durability | 750 Cycle |
|---|
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
| Storage temperature range | Mates with modular plug conforming to FCC part 68, subpart F. |
| Wave Soldering Temp | 255°C to 260°C/ 5 to 10 sec. |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 210C-11CA0 | 101 KB | PDF: Drawing |  |
| 3D | 210C-11CA0 | 287 KB | RAR: 3D File | |
