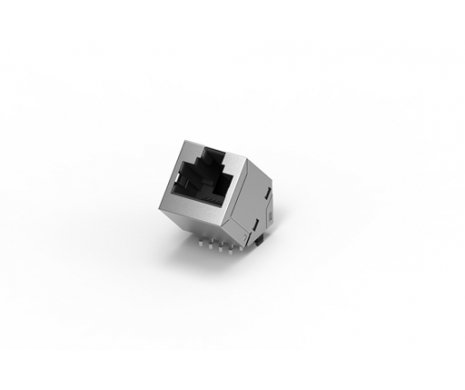

RJ45 Cat6 47.5° Entry, Upper Latch, DIP, w/o EMI / LED
210D-11CB3
Cat 6, 47.5° Entry, Upper Latch, DIP, w/o EMI / LED, 5u"
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 125VAC |
| Contact Resistance | 35mΩ |
| Insulation Resistance | 1,000MΩ |
| Dielectric Withstanding Voltage | 1,000VAC |
| Durability | 750 Cycle |
|---|---|
| PCB Retention Pre-Solder | 1LB min. |
| PCB Retention Post-Solder | 10LBS min. |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
| Storage temperature range | Mates with modular plug conforming to FCC part 68, subpart F. |
| Wave Soldering Temp | 255°C to 260°C/ 5 to 10 sec. |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 210D-11CB3 | 95 KB | PDF: Drawing |  |
| 3D | 210D-11CB3 | 154 KB | RAR: 3D File | |
