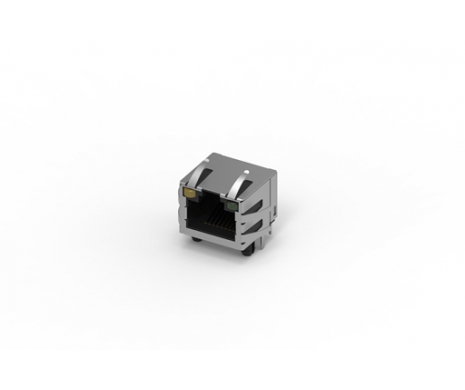

RJ45 R/A Upper Latch, DIP, w/EMI / LED
211A-1XCAA-R01
RJ45 Right Angle, Upper Latch, DIP, w/EMI / LED, 5u''

RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
ELECTRICAL
Current Rating1.5AMP
Voltage Rating125 VAC RMS
Contact Resistance30 Milliohms Max.
Insulation Resistance1000 Megohms Min. @ 500 VDC
DielectricStrength1000 VAC RMS 60Hz 1Minute
LED RatingForward Voltage: 2.2 Volts Typical.
Reverse Voltage5 Volts Maximum.
Operating750 Cycles Min.
MECHANICAL
Housing MaterialGlass Filled Polyester or High Temp. UL94V-0
Insert MaterialGlass Filled Polyester UL94V-0
Back Plate MaterialGlass Filled Polyester UL94V-0.
LED Size7*3.05*1.85, P=2.54mm.
Shield MaterialCopper Alloy 0.25mm Thickness Nickel Plating.
Contact MaterialPhosphor Bronze 0.35mm Thickness.
PlatingGold Plating over Nickel.
PCB Retention Pre-Solder1 LB Min.
PCB Retention Post-Solder10 LBS Min.
ENVIRONMENTAL
Operating TemperatureRange0℃ to +70℃
Storage Temperature Range-40℃ to +85℃
Storage Temperature RangeWave Soldering Temperature:255~265℃ (5~10 Seconds)
Storage Temperature RangeMates with Modular Plug Conforming to FCC Part 68, Subpart F.
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing211A-1XCAA-R01212 KBPDF: DrawingDownload
3D211A-1XCAA-R01179 KBRAR: 3D FileDownload
