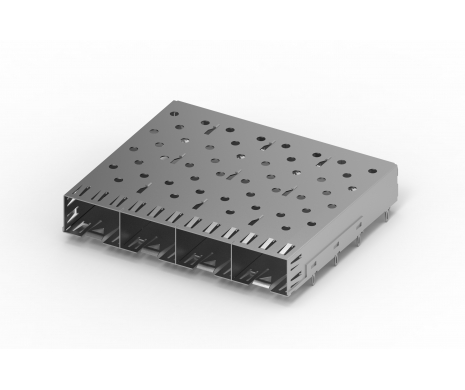

SFP Cage 1x4 Press Fit Type
223A-1401
SFP Cage 1x4 Press Fit Type

The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communication applications. ATTEND offers a variety of SFP/SFP+/QSFP cage types that support 1Gbps to 40Gbps data rates for Gigabit Ethernet and Optical Fiber applications and compatible industry-wide standard SFP/ SFP+/ QSFP modules for your application usage to fit your high-speed networking request.
SPECIFICATION
ELECTRICAL
Current Rating0.5A MAX.
Voltage Rating30V AC/DC
Contact Resistance20mΩ
Insulation Resistance500MΩ
Differential Impedance Voltage100Ω
MECHANICAL
Housing MaterialLCP UL94V-0, Black
Contact MaterialPhosphor Bronze, 0.2T
Operating Life250 Cycles Min.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
IR Temperature255°C±5°C (5 to 10 sec)
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing223A-1401256 KBPDF: DrawingDownload
Drawing223A-1401437 KBRAR: 3D FileDownload
