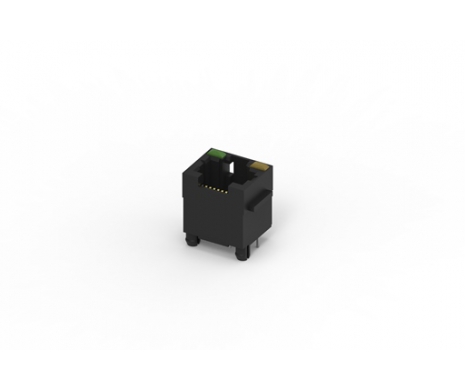

RJ45 Vertical DIP Type, w/o EMI, w/LED
211B-11C0B-01
RJ45 Vertical, DIP Type, w/o EMI, w/LED, 5u''
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Voltage Rating | 125V AC |
|---|---|
| Current Rating | 1.5A |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 500MΩ |
| Dielectric Strength | 1000V DC |
| Durability | 750 Cycles |
|---|---|
| Mating Force | 2.3 Kgf Max. |
| Operation Temperature | -40℃ to +85℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 211B-11C0B-01 | 136 KB | PDF: Drawing |  |
