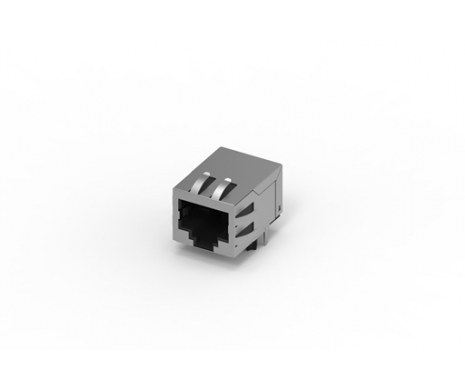

RJ45 R/A Bottom Latch, DIP, w/EMI, w/o LED
212A-11CA0-R
Right Angle, Bottom Latch, DIP, w/EMI, w/o LED, 5u"

RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
SPECIFICATION
ELECTRICAL
Insertion Loss0.3-100MHz -1.0 dB Max.
Return Loss1-30MHz -20dB Min. Load 100 Ohms
Return Loss30-60MHz -15dB Min. Load 100 Ohms
Return Loss60-80MHz -10dB Min. Load 100 Ohms
Cross Talk1 – 100MHz -30dB Min.
Common to Common Mode Rejection1-100MHz -30dB Min.
Turn RatiosRX=1:1(+/-3%) TX=1:1(+/-3%)
Isolation 60HzInput to Output 1500Vrms, 60 Seconds
Primary Inductance@100KHz 0.1Vrms.8mA DC Bias 350uH Min.
Rise Time (10-90%)2.5ns Typical
Mechanical
Housing MaterialHigh Temp. UL94V-0.
Contact MaterialPhosphor Bronze t=0.35mm
PlatingGold Plating over Nickel.
Operating Life750 Cycles Min.
PCB Retention Pre-Solder1 LB Min.
PCB Retention Post-Solder10 LBS Min.
ENVIRONMENTAL
Storage Temperature-40°C to +85°C.
Operation Temperature0℃ to +70℃
Wave Soldering Temperature255℃~265℃(3~5 Seconds)
Wave Soldering TemperatureMates with Modular Plug Conforming to FCC Part 68, Subpart F.
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing212A-11CA0-R119 KBPDF: DrawingDownload
